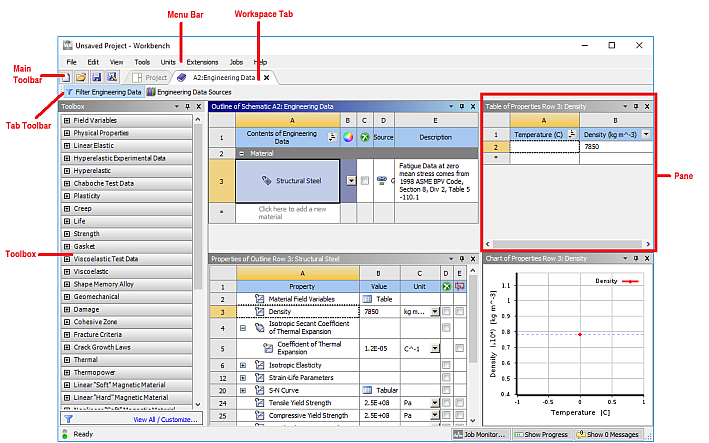

The Engineering Data workspace is an integrated into Ansys Workbench. Use the following image and table to understand the default interface layout and elements.
| Name | Description |
|---|---|
| Menu Bar | Allows you to access multiple Workbench menus |
| Tab Toolbar | Toggles various Engineering Data functions. |
| Toolbox | Displays data items that can be included in Engineering Data. |
| Engineering Data Sources Pane | Displays the available data sources and their location, edit state and description. |
| Outline Pane | Displays the outline of the contents of the selected data source in the Engineering Data Sources pane or the contents of Engineering Data. |
| Properties Pane | Displays the properties of the selected item in the Outline pane. |
| Table Pane | Shows the tabular data for the selected item in the Properties pane. |
| Chart Pane | Displays the chart of the item selected in the Properties pane. |
