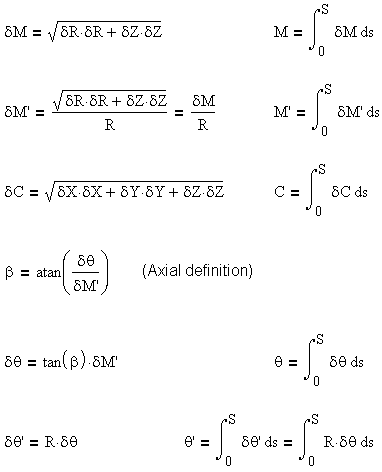

The following variables and equations are included to help describe the specialized coordinate systems used by BladeGen.
|
Z |
= |
Axial location. |
|
R |
= |
Radius or radial location. |
|
q or Theta |
= |
Rotation around Z axis from X towards Y axis (right hand rule). |
|
b or Beta |
= |
Blade Angle, measured from the axial or tangential direction. Internally, BladeGen always uses the axial definition. |
|
S |
= |
Fractional distance along a curve (between 0 and 1). |
|
M |
= |
Distance along meridional curve. |
|
M’ or M-Prime |
= |
Radius normalized distance along meridional curve. |
|
C |
= |
True 3D distance along camberline (meanline). |
|
q’ or Theta-Prime |
= |
Terminology given to describe the integral of R*dTheta. (See equations below) |
