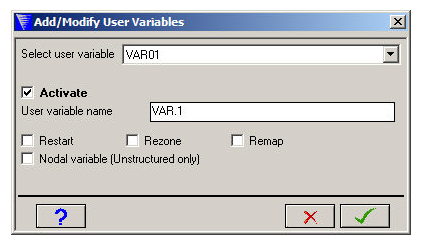

This window lets you add a new user variable or modify the selected user variable.
- Select user variable
You can define up to 20 user variables. Use this pull-down menu to select the user variable you want to define or modify.
- Activate
Check this box to activate (define) the selected user variable.
- User variable name
Enter the name you want to use for your user variable.
- Restart
Check this box if you want the user variable to be written to the restart (Save) file.
- Rezone
Check this box if you want the user variable to be included in the list of variables that are automatically rezoned.
- Transport
Check this box if you want the user variable to be included in the list of variables that are automatically transported in Euler Parts.
- Nodal Variable
For the unstructured solvers, element and nodal quantities are stored independently. Check this box to define a user variable that is associated with a node, rather than an element for the unstructured solvers. Note that nodal user variable data can only be interrogated via examine and time history plots. Contour plots are not available.
