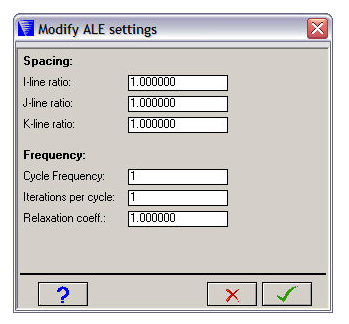

This window lets you change ALE settings.
- Spacing
The geometric ratios for spacing of I, J, and K lines. These are used only for certain motion constraints.
- Frequency
- Cycle Frequency
Enter how often (in cycles) you want ALE rezoning to be performed.
- Iterations per cycle
Enter the number of iterations you want the ALE solver to perform in converging to the spacing you have requested. This is used for all motion constraints except Fixed (Euler).
- Relaxation coefficient
Enter the relaxation coefficient you want to use for the ALE rezoning.
A value of 1.0 will move each node exactly to the location required for its motion constraint.
A value of 0.5 will move each node 50% of the distance towards the location required for its motion constraint.
