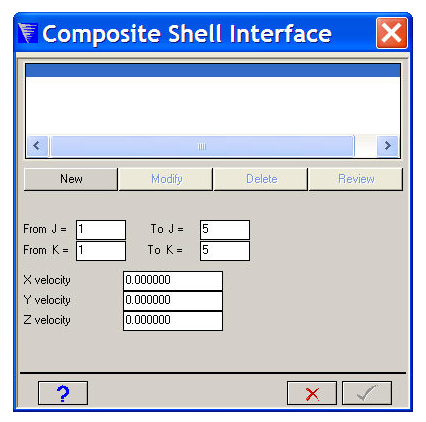

This window lets you define a shell as a composite shell, consisting of a number of different layers. The composite allows efficient modeling of thin composite materials which are subjected to structural, rather than shock type loading.
- New
Create a new shell layer definition.
- Modify
Modify an existing shell layer definition.
- Delete
Delete an existing shell layer definition.
- Review
Review the existing shell layer definition.
- Range
The J and K range of the shell to apply the selected layer definition.
- Velocity
The initial velocity of the shell.

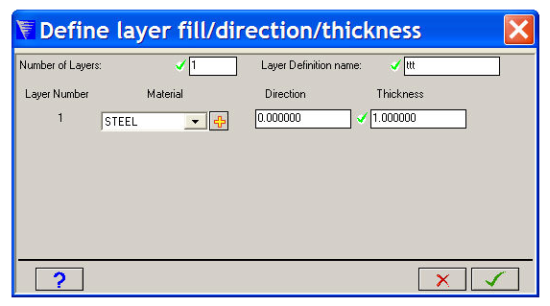

This window lets you create an existing layer definition.
- Number of Layers
Select the number of layers for the composite layer definition.
- Layer definition name
Enter a name for the layer definition.
- Material
Select the material for each material layer.
- Direction
For orthotropic materials, enter a material direction in degrees.
- Thickness
The thickness for each material layer.
This window lets you modify an existing layer definition.
- Number of Layers
The number of layers for the composite layer definition.
- Layer definition name
The name for the layer definition.
- Material
The material for each material layer.
- Direction
For orthotropic materials, enter a material direction in degrees.
- Thickness
The thickness for each material layer.
