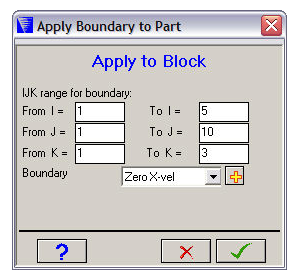

This window lets you apply a boundary condition to a block in index space of the current structured Part.
For an unstructured Part the boundary condition will be applied to all nodes, elements or faces of a Part.
You cannot apply two different Velocity boundary conditions to structured beam parts.
- IJK range for boundary
The IJK range of the block.
- Boundary
Select the boundary condition you want to apply from this pull-down menu.
You can define Boundary Conditions by clicking the Boundaries button in the Navigation Bar, or you can click
next to the pull-down menu.
