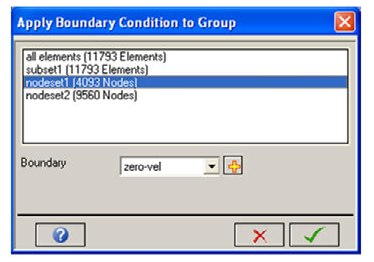

This window lets you apply a boundary condition to a Group. The type of Group and type of boundary condition must be consistent; that is, you can apply a nodal boundary condition only to a node Group, and a face boundary condition to a face Group.
- Group List
From the list, select the Group to which you want to apply the boundary condition.
- Boundary
Select the boundary condition to be applied to the Group.
