Unroll Tool

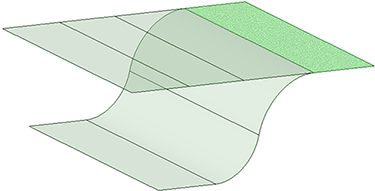

The Unroll tool works on surface bodies with planar or curved faces.

• Like Unfold in Sheet Metal, Unroll flattens all the surfaces based on a single selected surface.
• The result of Unroll is another surface shown in the Structure Tree as "Unrolled".
• You can have multiple unrolled surfaces in the model
