Dimension Tool

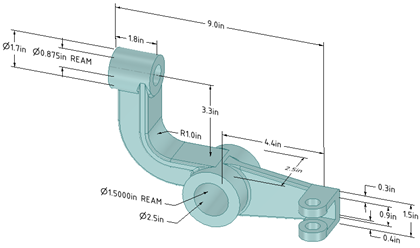

Use the Dimension tool to add a measurement to your design, drawing sheet, or 3D markup.

You can use annotation dimensions with the Pull and Move tools to change your design. See Driving modifications with annotation dimensions.

An annotation plane cannot be moved to a sub-component after you add dimensions because the references would be lost.

You can enable dual dimensions, which will display each dimension in both Metric and Imperial units. See Units options.
