VM-LSDYNA-WB-007
VM-LSDYNA-WB-007
Long Bar With Compressive Load
Overview
| Reference: | Any basic strength-of-materials book |
| Analysis Type(s): | Explicit Dynamics with WorkBench LS-DYNA |
| Element Type(s): | Solid |
| Input Files: | Link to Input Files Download Page |
Test Case

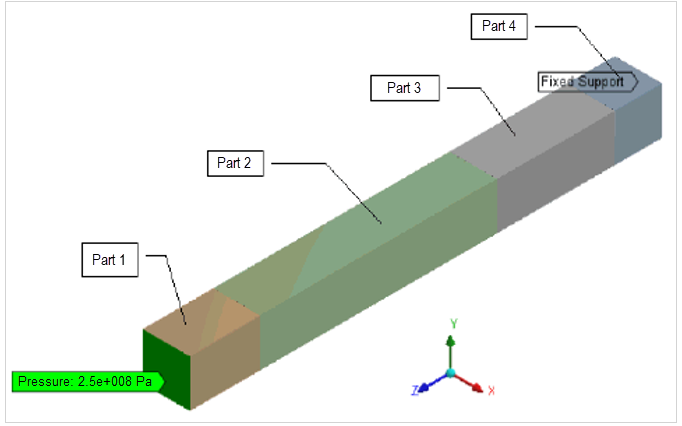

A multibody of four bars connected end to end has one of the end faces fixed, and a pressure is applied to the opposite face as shown in the problem sketch. The multibody is used to nullify the numerical noise near the contact regions. Find the maximum equivalent stress for the whole multibody as well as the safety factor for each part using the maximum equivalent stress theory with tensile yield limit.
This test case is also solved using Ansys Mechanical. See VM-WB-MECH-009.
| Material Properties | E(Pa) | ν | Tensile Yield (Pa) | Geometric Properties | Loading |
|---|---|---|---|---|---|
| Part 1 | 1.93e11 | 0 | 2.07e8 |
Part 1: 2 m x 2 m x 3 m | Pressure = 2.5e8 Pa |
| Part 2 | 7.1e10 | 0 | 2.8e8 | Part 2: 2 m x 2 m x 10 m | |
| Part 3 | 2e11 | 0 | 2.5e8 | Part 3: 2 m x 2 m x 5 m | |
| Part 4 | 1.1e11 | 0 | 2.8e8 | Part 4: 2 m x 2 m x 2 m |
