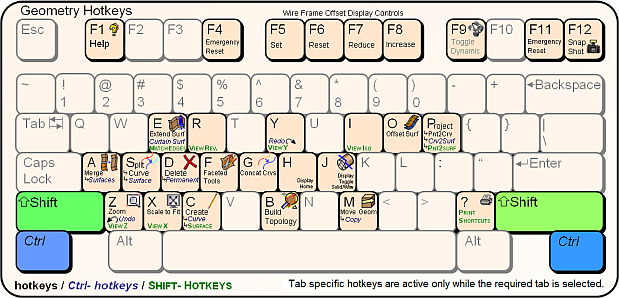

In addition to the common hotkeys listed above, the hotkeys shown in the following image and table are available only when working with the Geometry tab functions.
| Hotkey function | Ctrl + Hotkey function | SHIFT + Hotkey function | |
|---|---|---|---|
| a | Merge surfaces | ||
| b | Build diagnostic topology | ||
| c | Create curve | Create surface | |
| d | Delete geometry entities | Delete geometry permanently | |
| e | Extend surface | Create curtain surface | Stitch/match edges |
| f | Faceted tools | Move facets to new | |
| g | Concatenate curves | ||
| h | Home position | ||
| i | Isometric view | ||
| j | Toggle solid display | ||
| m | Move geometry | Copy geometry | |
| o | Offset surface | ||
| p | Project points to curves | Project curve to surface | Project point to surface |
| r | Reverse view | ||
| s | Split curve | Extend split | |
| x | Scale to fit | View in x-direction (right side) | |
| y | Redo last undone operation | View in y-direction (top view) | |
| z | Zoom in | Undo last operation | View in z-direction (front view) |
| ? | Print hotkey list (message window) |
