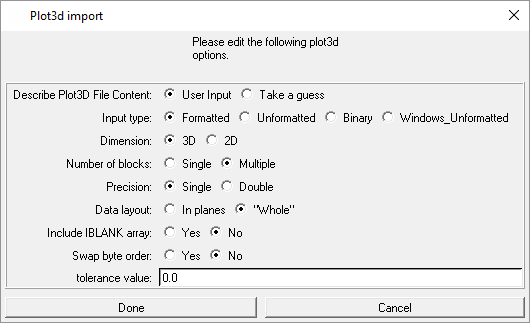

The option converts a Plot3d file to a Geometry file (*.tin) and loads it.
- Describe Plot3D File Content
User Input allows you to specify file parameters.
- Input type
Specify the input type. Windows_unformatted type refers to unformatted Plot3d meshes created on Windows. This option allows Unix platforms to read these files as well.
- Number of blocks
Specify whether there is a single block or multiple blocks.
- Precision
Specify either single or double precision.
- Data layout
Specify whether data layout is in planes or not.
- Include IBLANK array
Specify whether to include or omit IBLANK array.
- Swap byte order
To toggle compatibility between platforms with little-endian or big-endian data storage.
