Y-Split Hexas at Vertex

  The Y-Split Hexas at Vertex option splits hexa elements at the vertex in a Y-Grid fashion. This can be used to split degenerate unstructured hexas of pyramid or prism shape to improve the quality as shown in the example below. Only elements connected at the vertex will be affected. This can be used for surface mesh as well.

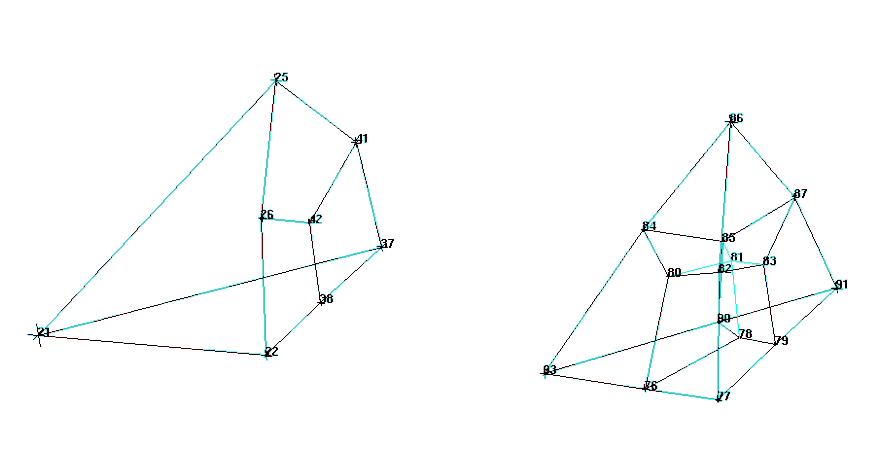

Figure 458: Y-Split Hexas at Vertex Example

Y-Split Hexas at Vertex Example
