VMFL062

VMFL062
Fully Developed Turbulent Flow Over a “Hill”

Overview

Reference V. Baskaran, A.J. Smits, P.N. Joubert, "A turbulent flow over a curved hill Part 1. Growth of an internal boundary layer". Journal of Fluid Mechanics, Vol. 182, pp. 47-83, 1987

Solver Ansys Fluent

Physics/Models

Low Re k-e Model

Input File

VMFL062_FLUENT.cas

Project Files Link to Project Files Download Page

Test Case

Flow over a “hill” geometry with separation and reattachment is modeled. Fully developed turbulent profile is specified at the inlet.

Figure 151: Flow Domain

Material Properties	Geometry	Boundary Conditions
Density : 1 kg/m³ Viscosity = 7.5188e-07 kg/m-s	Height of the hill = 20.5 mm	Fully developed profiles are specified at the inlet for (i) Velocity, (ii) Turbulent kinetic Energy, and (iii) Eddy dissipation rate. Average velocity at inlet = 1 m/s

Material Properties

Geometry

Boundary Conditions

Density : 1 kg/m³

Viscosity =

7.5188e-07 kg/m-s

Height of the hill =

20.5 mm

Fully developed profiles are specified at the inlet for (i) Velocity, (ii) Turbulent kinetic Energy, and (iii) Eddy dissipation rate.

Average velocity at inlet = 1 m/s

Results Comparison for Ansys Fluent

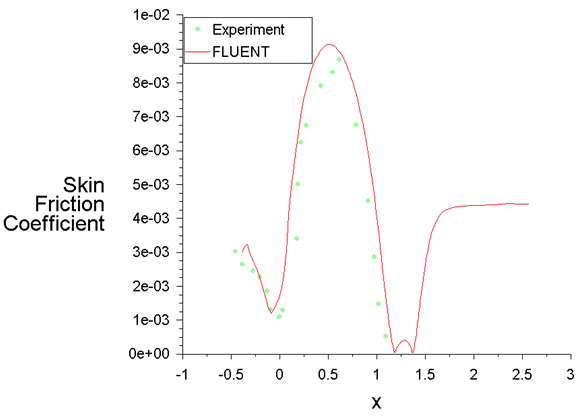

Figure 152: Comparison of Skin Friction along the Wall
