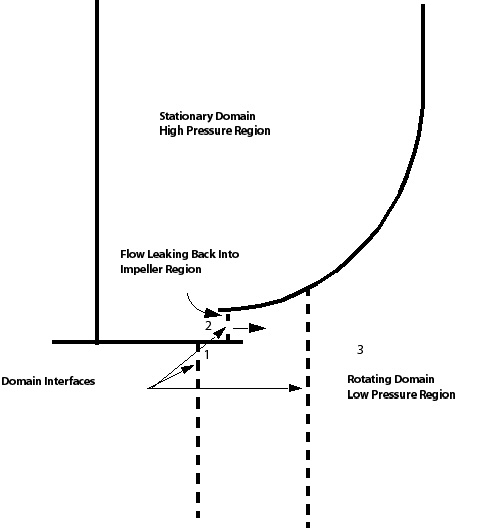

A close-up view of part of Figure 11.5: Radial Compressor, which models flow leaking from a volute back into the impeller region. To model the feature, you can use two domain interfaces (at positions 1 and 2), or a single domain interface downstream of the leak (position 3).
