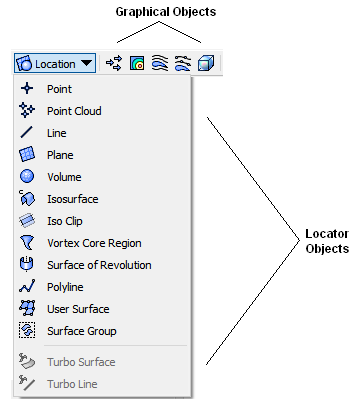

CFD-Post supports a variety of graphical objects and locator objects that are used to create postprocessing plots and to define locations for quantitative calculation. In Figure 3.1: Sample CFD-Post Interface a plane has been inserted and configured to display temperature.

The details of all the possible objects and associated parameters that can be defined in CFD-Post are described in the CFD-Post .ccl file available with the installation.
