This panel is a component of the Options dialog box in the Model Visualisation window. To activate the Options dialog box select options from the Select menu on the Model Visualisation toolbar.
The Numbering panel allows you to switch various element numbering systems on and off. This is useful in checking the integrity of your model.
The available options are:
This utility is a component of the element style panel, which in turn is a component of the Options dialog box in the Model Visualisation window. To activate the Options dialog box select options from the Select menu on the Model Visualisation toolbar.
To view any of the numbering systems, this toggle button must be selected.
Note: Only one set of numbers can be selected at any one time apart from NodeNumbers, which can be viewed along side any other numbering system.
This utility is a component of the element style panel , which in turn is a component of the Options dialog box in the Model Visualisation window. To activate the Options dialog box select options from the Select menu on the Model Visualisation toolbar.

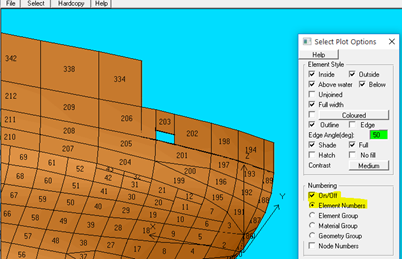

The element numbers (labels) may be viewed by selecting this radio button.
Tip:
You may view selected parts of your structure(s) by using one of the Aqwa-Plane commands.
When selecting a numbering system ensure that On/Off is switched on, and the screen is updated using the button.
This utility is a component of the element style panel , which in turn is a component of the Options dialog box in the Model Visualisation window. To activate the Options dialog box select options from the Select menu on the Model Visualisation toolbar.
If the model elements have been assigned geometry group numbers then group numbers may be viewed by selecting this radio button.
Tip:
You may view selected parts of your structure(s) by using one of the Aqwa-Plane commands.
When selecting a numbering system, ensure that On/Off is switched on, and the screen is updated using the button.
This utility is a component of the element style panel , which in turn is a component of the Options dialog box in the Model Visualisation window. To activate the Options dialog box select options from the Select menu on the Model Visualisation toolbar.
The material group numbers may be viewed by selecting this radio button.
Tip:
You may view selected parts of your structure(s) by using one of the Aqwa-Plane commands.
When selecting a numbering system ensure that On/Off is switched on, and the screen is updated using the button.
This utility is a component of the element style panel , which in turn is a component of the Options dialog box in the Model Visualisation window. To activate the Options dialog box select options from the Select menu on the Model Visualisation toolbar.
The geometry group numbers may be viewed by selecting this radio button.
Tip:
You may view selected parts of your structure(s) by using one of the Aqwa-Plane commands.
When selecting a numbering system ensure that On/Off is switched on, and the screen is updated using the button.
This utility is a component of the element style panel , which in turn is a component of the Options dialog box in the Model Visualisation window. To activate the Options dialog box select options from the Select menu on the Model Visualisation toolbar.

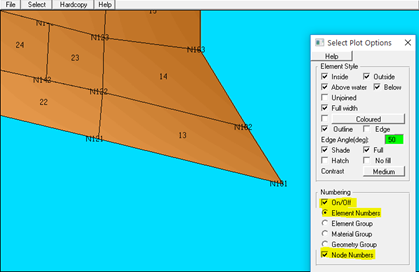

The element node numbers may be viewed by selecting this toggle button.
Tip:
A clearer display of the node numbers will be achieved with the Unjoined view switched on.
You may view selected parts of your structure(s) by using one of the Aqwa-Plane commands.
When selecting a numbering system ensure that On/Off is switched on, and the screen is updated using the button.
