1.9. Editing Mouse Button Assignments

If you have a preferred way of using your mouse, you can customize the mouse button assignments for the following actions:

  • Zoom

  • Pan

  • Rotate XY (2D plane)

  • Rotate Z (3D plane)

To set mouse button assignments:

  1. Click   on the toolbar.

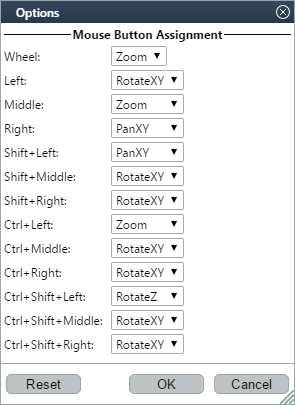

  2. In the Options dialog box, specify the desired action for each mouse button or keyboard/mouse button combination, or specify None if you do not want to assign an action. You can assign the same action to multiple buttons/combinations if desired.

    To reset the mouse button assignments to the default values, click Reset.

  3. Click OK.
