56.7. Results and Discussion

Following are the equivalent stress and total mechanical equivalent strain plots following the 2D axisymmetric analysis:

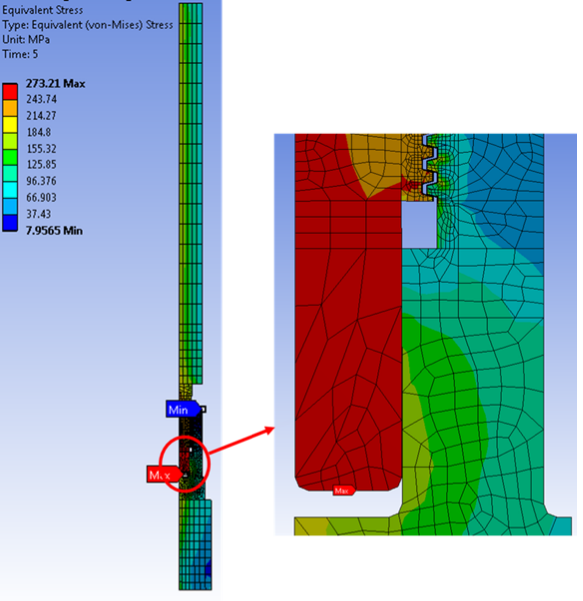

Figure 56.9: Equivalent Stress After 2D Axisymmetric Analysis

Equivalent Stress After 2D Axisymmetric Analysis

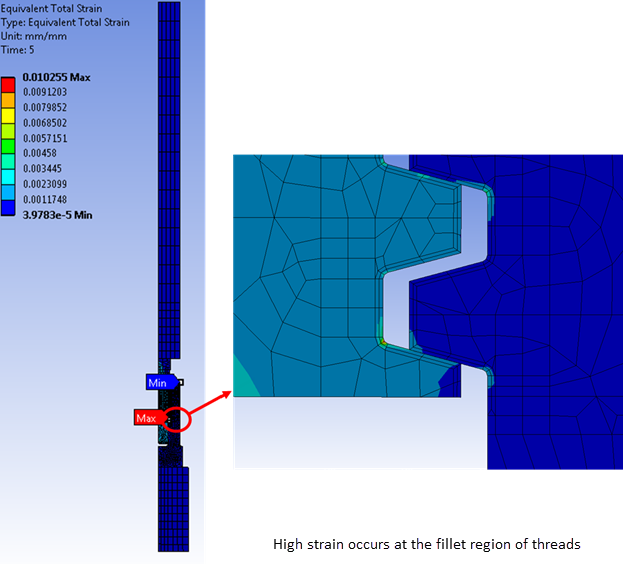

Figure 56.10: Total Mechanical Equivalent Strain After 2D Axisymmetric Analysis

Total Mechanical Equivalent Strain After 2D Axisymmetric Analysis

The following figures show the equivalent stress and total mechanical equivalent strain plots on the extruded 3D model after mapping (MAP2DTO3D,SOLVE):

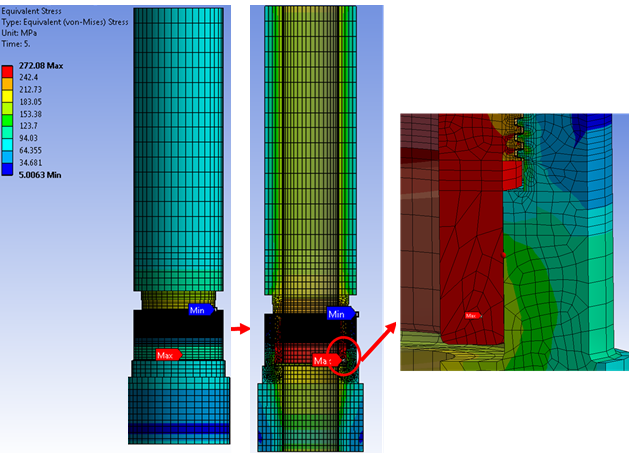

Figure 56.11: Equivalent Stress After MAP2DTO3D

Equivalent Stress After MAP2DTO3D

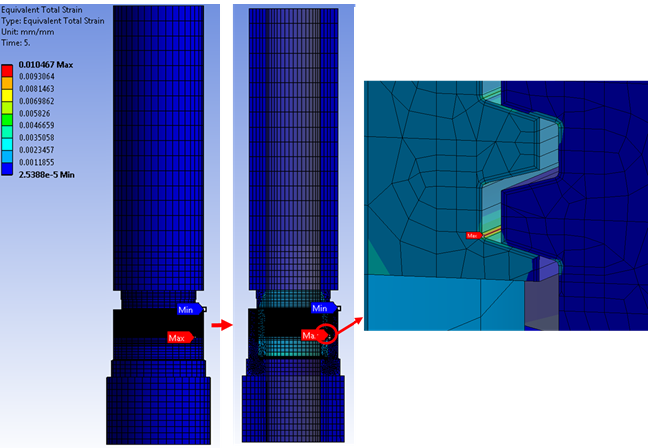

Figure 56.12: Total Mechanical Equivalent Strain After MAP2DTO3D

Total Mechanical Equivalent Strain After MAP2DTO3D

As expected, the results closely match those of the corresponding 2D model. Results may differ, however, if contact settings are not equivalent in the 2D and extruded 3D models. In such cases, experiment with the contact settings to obtain matching results.

The following figures show the equivalent stress and total mechanical equivalent strain plots on the 3D model after solving for the bending load via the multiframe restart analysis:

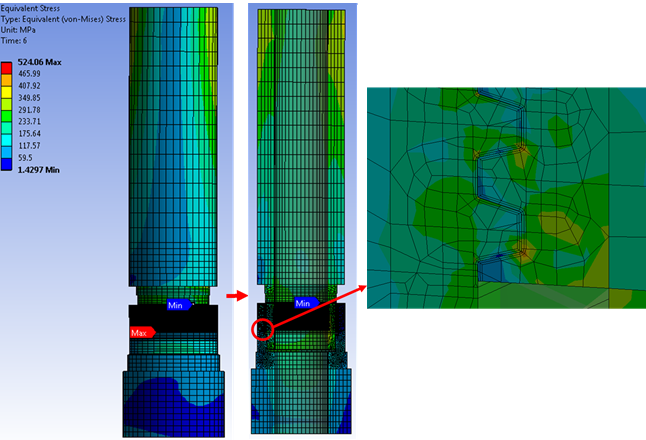

Figure 56.13: Equivalent Stress After Restart Analysis with Bending Load

Equivalent Stress After Restart Analysis with Bending Load

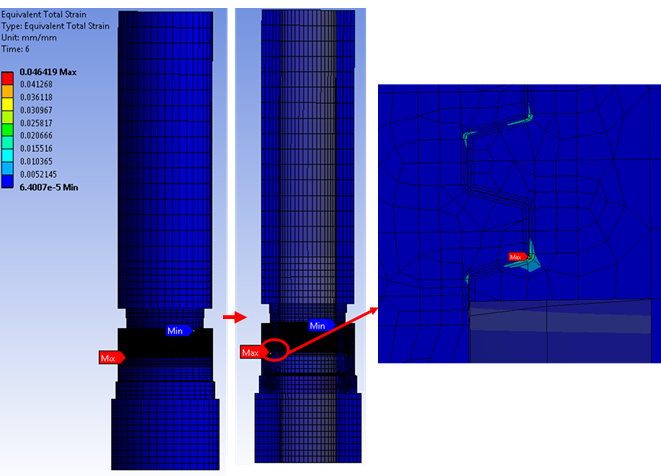

Figure 56.14: Total Mechanical Equivalent Strain After Restart Analysis with Bending Load

Total Mechanical Equivalent Strain After Restart Analysis with Bending Load

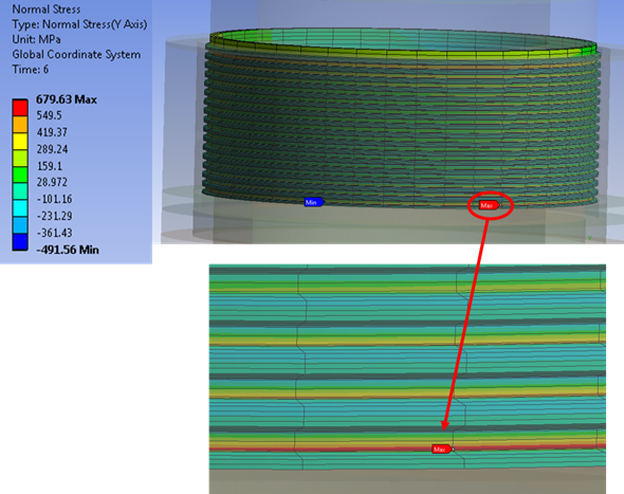

The following figure shows the bending stress plot on threads after solving the 3D model with bending load:

Figure 56.15: Bending Stress on the Threads at the End of the Analysis

Bending Stress on the Threads at the End of the Analysis

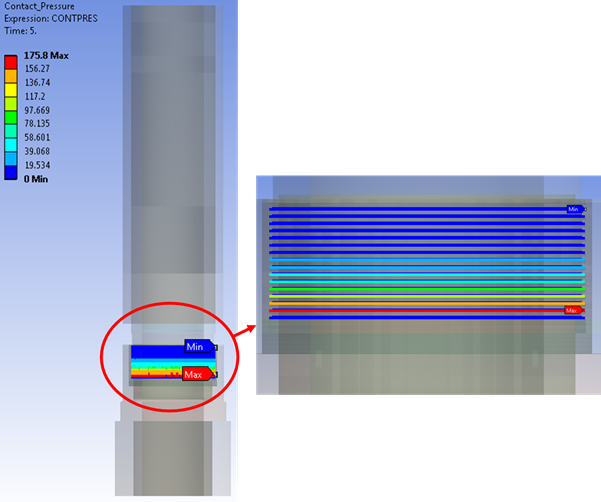

This figure shows the contact pressure plot on the threaded region for the 3D model after mapping (MAP2DTO3D,SOLVE):

Figure 56.16: Contact Pressure at the Threaded Connection After MAP2DTO3D

Contact Pressure at the Threaded Connection After MAP2DTO3D

As expected, the contact pressure is uniform in the circumferential direction.

Following is the contact pressure plot on the threaded region at the end of the analysis:

Figure 56.17: Contact Pressure at the Threaded Connection

Contact Pressure at the Threaded Connection

Due to bending, the threaded connection bears most of the load at only one side.

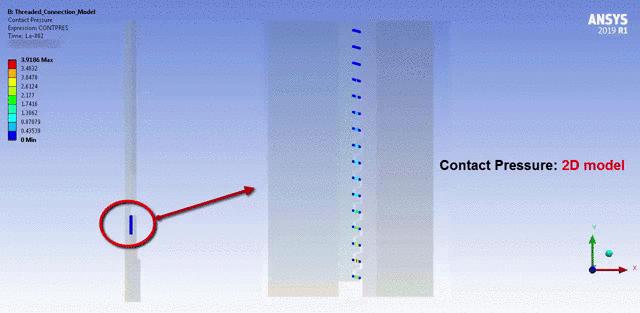

This animation shows the change in contact pressure for the threaded connection during the entire analysis:

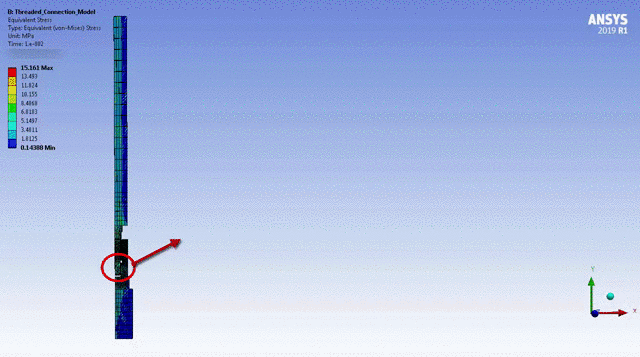

This animation shows the equivalent stress result during the full analysis, and the change in the threaded-connection status at the last load step (during bending):
