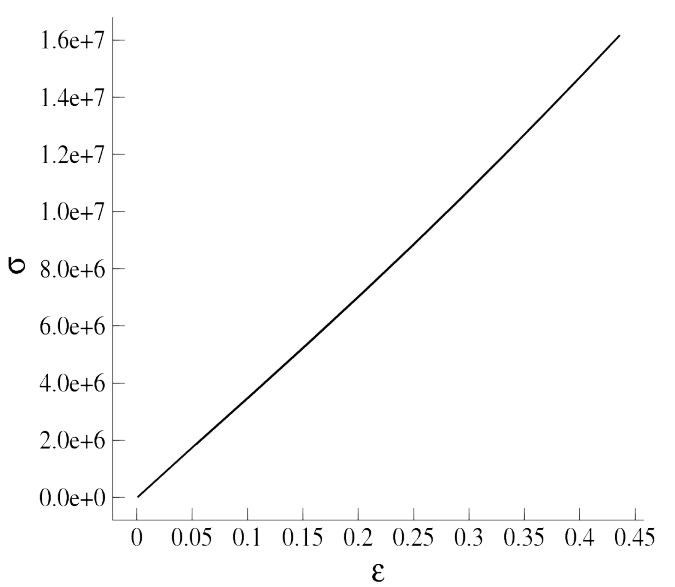

Equivalent stress and strain are extracted for the node at the center of the mesh and the results are written to an output file. The following table shows the results:
| Time | Stress | Strain |
|---|---|---|
| 0.100000E+00 | 0.18511346E+07 | 0.53645216E-01 |
| 0.200000E+00 | 0.36665547E+07 | 0.10602121E+00 |
| 0.300000E+00 | 0.54384537E+07 | 0.15643180E+00 |
| 0.400000E+00 | 0.71593019E+07 | 0.20437866E+00 |
| 0.500000E+00 | 0.88222967E+07 | 0.24957578E+00 |
| 0.600000E+00 | 0.10422123E+08 | 0.29193486E+00 |
| 0.700000E+00 | 0.11955693E+08 | 0.33153319E+00 |
| 0.800000E+00 | 0.13422645E+08 | 0.36857480E+00 |
| 0.900000E+00 | 0.14825551E+08 | 0.40335214E+00 |
| 0.100000E+01 | 0.16169843E+08 | 0.43621175E+00 |
| 0.110000E+01 | 0.14825540E+08 | 0.40324373E+00 |
| 0.120000E+01 | 0.13422581E+08 | 0.36836731E+00 |
| 0.130000E+01 | 0.11955591E+08 | 0.33123410E+00 |
| 0.140000E+01 | 0.10422004E+08 | 0.29155654E+00 |
| 0.150000E+01 | 0.88221827E+07 | 0.24913378E+00 |
| 0.160000E+01 | 0.71592219E+07 | 0.20389315E+00 |
| 0.170000E+01 | 0.54384351E+07 | 0.15592898E+00 |
| 0.180000E+01 | 0.36666162E+07 | 0.10553450E+00 |
| 0.190000E+01 | 0.18512794E+07 | 0.53215926E-01 |
| 0.200000E+01 | 0.46409597E-08 | 0.66716967E-03 |
