Following is finite element model of a lumbar motion segment:

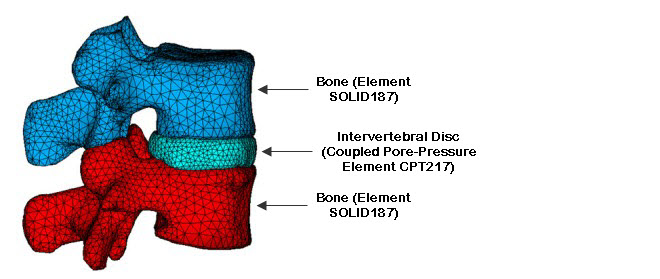

Figure 10.2: Finite Element Model of a Human Lumbar Motion Segment

Because the IVD is composed of soft tissue, it is modeled using CPT217 coupled pore-pressure-thermal elements. Bones in the segment are modeled using SOLID187 solid elements.
