Native Mechanical APDL solid modeling is used to create a 3D representation of the geometry.

All bodies share faces with the adjacent bodies, so no contact is required.

To reduce the solution time, a coarse SOLID187 tetrahedron mesh is used.

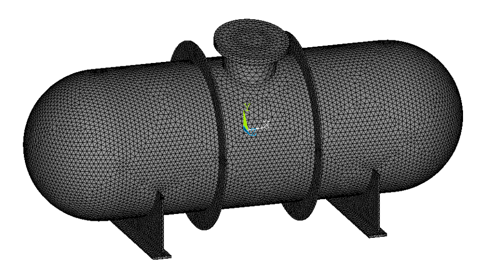

Figure 65.2: Tetrahedron Mesh
