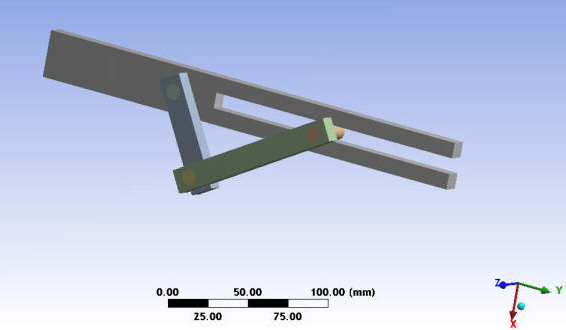

The geometry for the crank slot model consists of a base and two rods. The two rods are attached to each other and the base with three bolts. The material used for all components is structural steel.
The material properties for this analysis are as follows:
| Young's modulus (E) = 2e+005 MPa |
| Poisson's ratio (υ) = 0.3 |
| Density = 7.85e-006 kg/m |
