2.1. Project Description

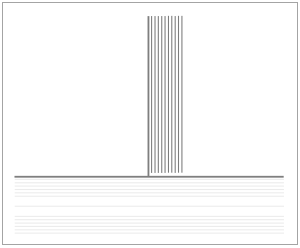

You will create five components for the T-joint section by defining their OSSs and plies. The plies are added in five Modeling Groups following this sequence:

  1. Base Plate

    • [90, 0 +45 -45, 90, 0°] 0.1 mm UD

    • 10 mm Honeycomb core

    • [0, 90 +45 -45, 0, 90°] 0.1 mm UD

  2. Stringer

    • 5 x ([0, 90°] 0.1 mm UD)

  3. Left Bonding

    • 4 x ([+45, -45°] 0.1 mm UD)

  4. Right Bonding

    • 4 x ([+45, -45°] 0.1 mm UD)

  5. Base Cover

    • [+45, -45, 0, 90°] 0.1 mm UD
