[点群] (Point Cloud)

この機能は、Ansys Zemax OpticStudio の Premium Edition と Enterprise Edition でのみ使用できます。



面を PCD 形式で 3D 点群にエクスポートする機能です。

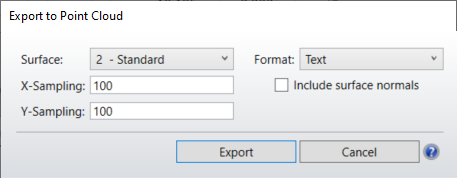

設定 :

[面] (Surface) 3D 点群にエクスポートする面。

[X サンプリング] (X-Sampling): 面の X 軸方向のサンプリング点数。

[Y サンプリング] (Y-Sampling): 面の Y 軸方向のサンプリング点数。

[フォーマット] (Format): テキスト、バイナリ、圧縮済みバイナリの、いずれのフォーマットでエクスポートするかを選択します。

[面法線を含める] (Include surface normals): チェックすると、面法線を含めて面がエクスポートされます。
