Cylinder Volume

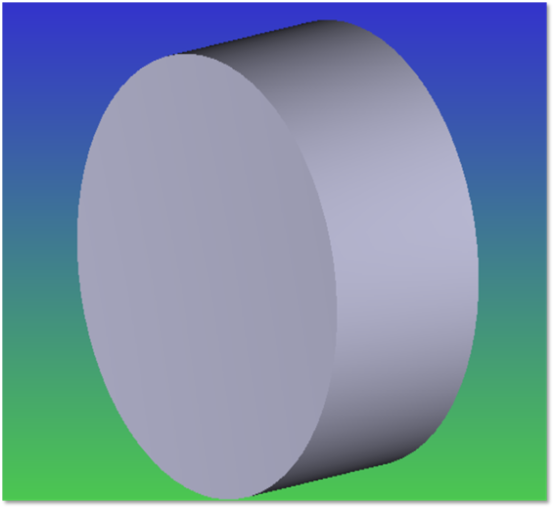

A cylinder volume is a rotationally symmetric volume defined by 3 parameters:

Parameter #	Description	Face Name	Face #
1	The radius of the front circular aperture.	Front	1
2	The length along the local Z axis of the cylinder.	Side Faces	0
3	The radius of the rear circular aperture.	Back	2

This object is very similar to the cylinder pipe, except the front and rear faces are included to make the shape a closed volume. Because the object is a closed volume, it may be reflective, refractive, or absorbing.

The reference coordinate is the center of the front aperture. Face Numbers: Front face Face 1, back face Face 2, all other faces Face 0.
