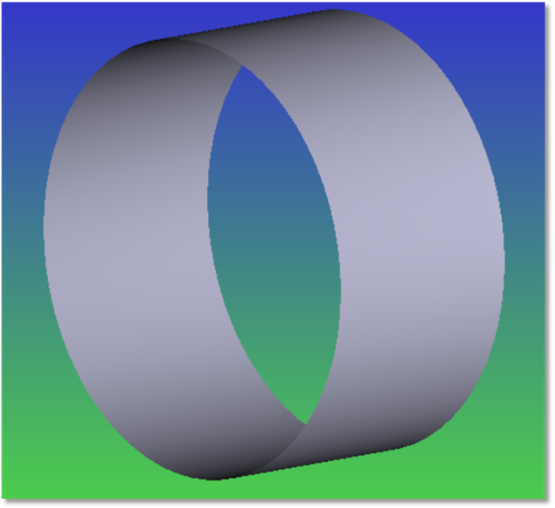

Cylinder Pipe

A cylinder pipe is a rotationally symmetric surface defined b parameters:

Parameter #	Description	Face Name	Face #
1	The radius of the front circular aperture.	All Faces	0
2	The length along the local Z axis of the cylinder.	All Faces	0
3	The radius of the rear circular aperture.	All Faces	0

This object is normally used to define a reflective light pipe. The reference coordinate is the center of the front aperture Face Numbers: All faces Face 0
