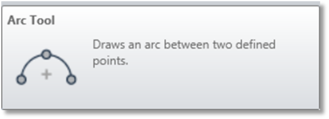

Arc Tool

The Arc Tool is used to create an arc segment that is limited to one half-circle.  Creating an arc requires three simple steps:

1)Select the Arc Tool from the toolbox and plot a point.  If you are continuing a sketch from an existing point, a new point does not need to be plotted to start an arc.

2)Click once to place the location of the end point

3)Adjust the preview curve by moving the mouse cursor.  The final click will plot the arc and produce a new control point to draw from at the end point.

The start and end points of the arc are adjustable using the Arrow Tool.
