WJ Spiral Channel Geometry

WJ Channel-Lam, WJ Channel Height, WJ Channel Width, WJ Channel Spacing

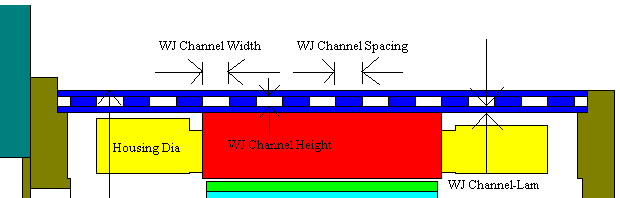

The dimensions of the housing spiral groove channel are shown below - only used when the Housing Type is set to Water Jacket (Spiral).

See Housing Water Jacket [Input Data Editor], Radial Cross-Section Editor and Axial Cross-Section Editor.
