Temperature [Output Data]

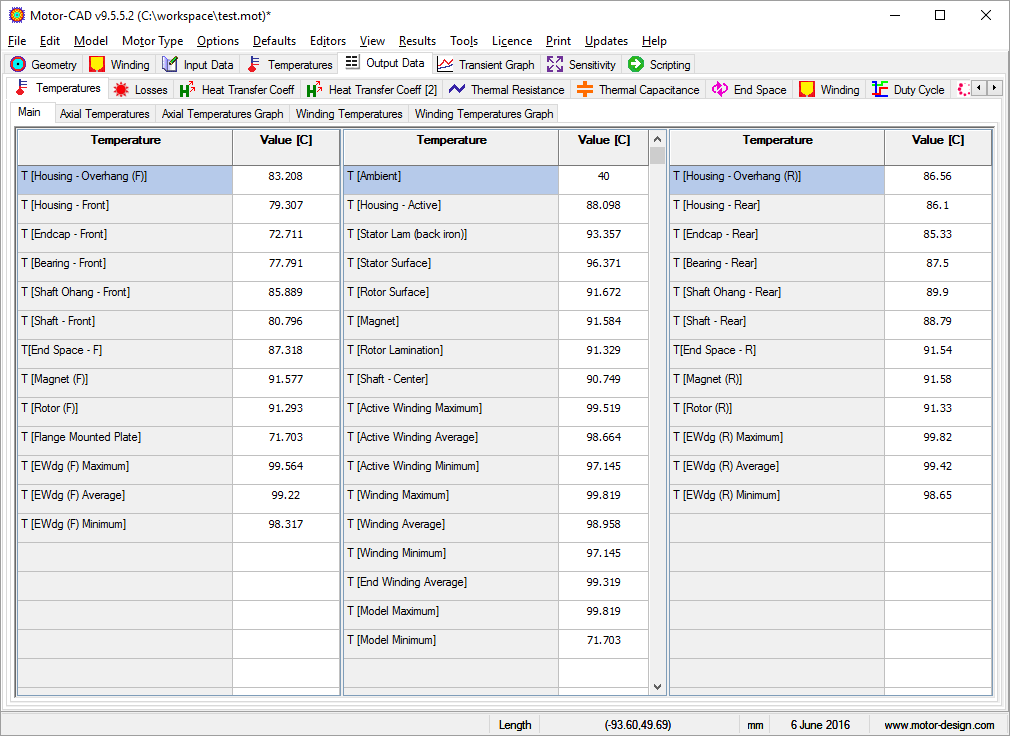

Set of 3 Grids showing numerical Output Data for the Temperature values.
T [Ambient]
Temperature of ambient Schematic node [
Ambient].
Note that the user can set separate values for Ambient Temperature [Convection] and Ambient Temperature [Radiation]. This is required if the local fluid ambient is different to that of the surrounding surfaces with a view of the machine. The hot/cold surface will give a different amount of radiation than if the fluid ambient was used in its calculation.
T [Housing - Active]
Temperature of housing Schematic node [
Housing]
T [Housing - Overhang (F)]Temperature of housing overhang [Front] Schematic node [Hoh[F]]
T [Housing - Front]
Temperature of housing front surface Schematic node [Housing[F]]
T [Endcap - Front]
Temperature of front endcap Schematic node [
Endcap[F]]
T [Flange Mounted Plate]Temperature of flange mounted plate Schematic node [
Plate]
T [Housing - Overhang (R)]Temperature of housing overhang [Rear] Schematic node [Hoh[R]]
T [Housing - Rear]
Temperature of housing rear surface Schematic node [Housing[R]]
T [Endcap - Rear]
Temperature of rear endcap Schematic node [Endcap[R]]
T [Stator Lamination (back iron)]Temperature of stator lamination (back iron) Schematic node [
Yoke]
T [Stator Lamination (tooth)]Temperature of stator lamination (tooth) Schematic node [Tooth]
T [Stator Bore]
Temperature of stator bore Schematic node [Stator Bore]
T [Rotor Surface]
Temperature of rotor surface Schematic node [
Rotor Surface]
T [Stator Sleeve] Temperature of stator sleeve Schematic node if used.
T [Rotor Banding] Temperature of rotor banding Schematic node if used.
T [Magnet]
Temperature of magnet centre point Schematic node [Magnet]
T [IPM Pole] Temperature of magnet pole Schematic in an embedded type magnet design - BPM Rotor.
T [Rotor Tooth]
Temperature of rotor lamination Schematic node [
Rotor Lam]
T [Rotor Pole]
Temperature of rotor lamination Schematic node [Rotor Lam]
T [Shaft - Centre]
Temperature of shaft centre Schematic node [
Shaft]
T [Shaft - Front]
Temperature of shaft front Schematic node [Shaft[F]]
T [Shaft - Rear]
Temperature of shaft rear Schematic node [Shaft[R]]
T [Shaft Ohang - Front]
Temperature of shaft overhang (front) Schematic node [Shaft OH]
T [Shaft Ohang - Rear]
Temperature of shaft overhang (rear) Schematic node [Shaft OH]
T [Mid Airgap)]
Temperature of mid airgap Schematic node [Airgap]
T [End Space (F)]
Temperature of Schematic node in space between front end-winding and shaft overhang [ESpace[F]]
T [End Space (R)]
Temperature of Schematic node in space between rear end-winding and shaft overhang [ESpace[R]]
T [Rotor Cage]
Temperature of rotor cage Schematic node [
Cage]
T [WJ Fluid (A)]
Temperature of housing water jacket active fluid Schematic node [wj[A]]
T [WJ Fluid (F)]
Temperature of housing water jacket front fluid Schematic node [wj[F]]
T [WJ Fluid (R)]
Temperature of housing water jacket rear fluid Schematic node [wj[R]]
T [SG Fluid (A)]
Temperature of shaft spiral groove active fluid Schematic node [sg[A]]
T [SG Fluid (F)]
Temperature of shaft spiral groove front fluid Schematic node [sg[F]]
T [SG Fluid (R)]
Temperature of shaft spiral groove rear fluid Schematic node [sg[R]]
T [Wet Rotor (F)] Temperature of wet rotor front fluid Schematic node (end winding bore).
T [Wet Rotor (R)] Temperature of wet rotor rear fluid Schematic node (end winding bore).
T [Wet Rotor (EW End)] Temperature of wet rotor end winding end section fluid Schematic node (front and rear nodes)
T [Spray Nodes] Temperature of various nodes in the Spray Cooling path
T [Encoder]
Temperature of encoder body Schematic node [Encoder]
T [Encoder Case]
Temperature of encoder case Schematic node [Enc Case]
T [Foot Mounted Base]
Temperature of foot mounted base-plate Schematic node [Foot Mounted Base]
T [Winding Outer Surface]
Temperature of winding outer layer Schematic node [Winding Outer]
T [Winding Layer]
Temperature of winding layer = n Schematic node [Wdg Layer n]
N.B. - the inner most winding layer is always displayed as Wdg Layer n in the Schematic.
T[EWdg (F)] Temperature of front endwinding
T[EWdg (R)] Temperature of rear endwinding
T [Active Winding Maximum] Maximum winding temperature of the active section of the windings
T [Active Winding Average] Average winding temperature - volume based average of the active section of the windings
T [Active Winding Minimum] Minimum winding temperature of the active section of the windings
T [Winding Maximum] Maximum winding temperature - volume based average of the whole winding (active and end windings).
T [Winding Average] Average winding temperature - volume based average of the whole winding (active and end windings).
T [Winding Minimum] Minimum winding temperature - volume based average of the whole winding (active and end windings).
T [End Winding Average] Average end winding temperature.
T [Model Maximum] Maximum temperature in the model
T [Model Minimum] Minimum temperature in the model
See also Output Data, Units.
