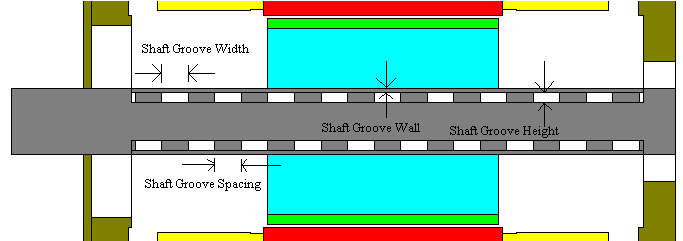

Shaft Groove Geometry
Only used when Shaft Spiral Groove used.
|
Shaft_Groove_Wall |
Radial thickness of shaft spiral groove cover (distance between spiral groove channel top and rotor lamination) |
|
Shaft_Groove_Height, |
The height of the shaft spiral groove duct. |
|
Shaft_Groove_Width |
The width of the shaft spiral groove duct. |
|
Shaft_Groove_Spacing |
The spacing between the shaft spiral groove ducts. |
See Shaft Spiral Groove [Input Data Editor], Radial Cross-Section Editor and Axial Cross-Section Editor.
