Radial Geometry (Inner Rotor Machines)

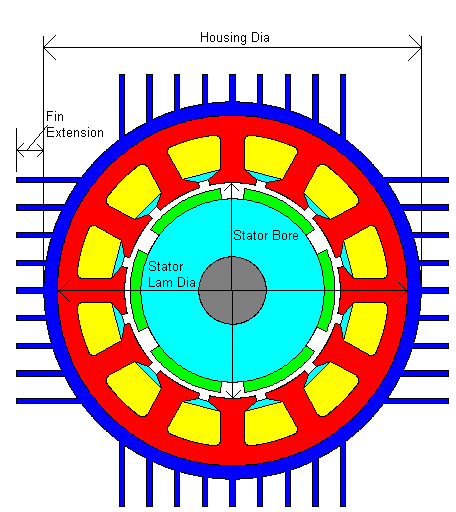

These are the radial dimensions of the inner rotor machines.
|
Housing Dia: |
Housing Diameter |
|
Stator Bore: |
Stator Bore Diameter |
|
Stator Lam Dia |
Stator Lamination Diameter |
|
Fin Extension: |
Fin Extension outside the Housing Diameter |
See Radial Cross-Section Editor and Axial Cross-Section Editor.
