Models

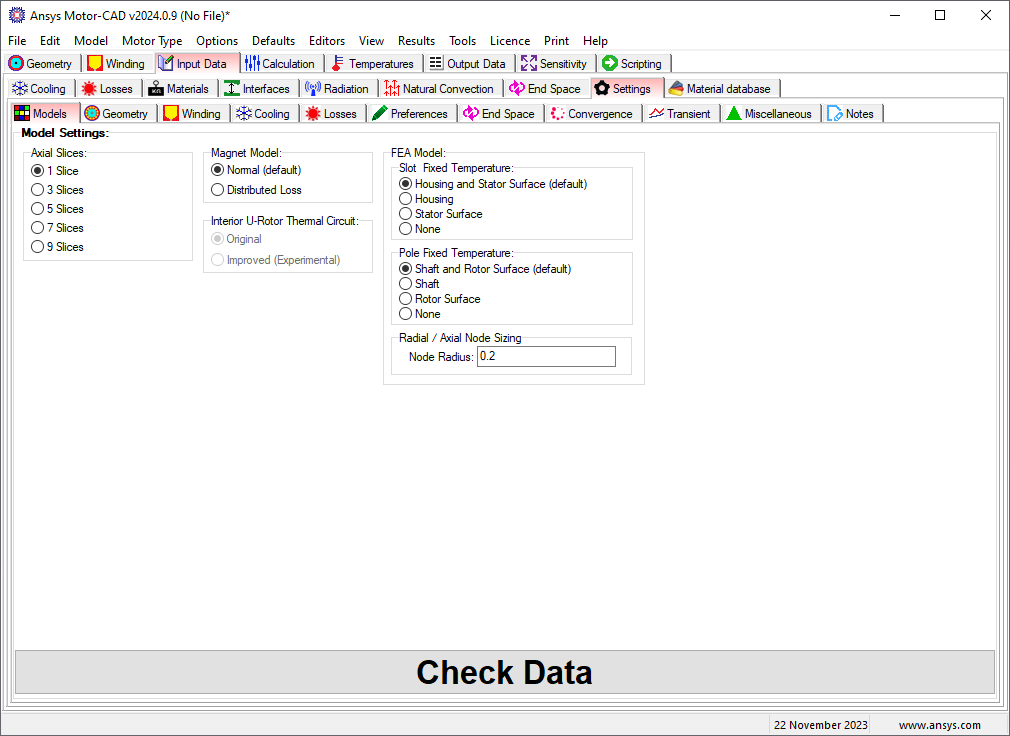

The editor has options to change the following model settings:

• Axial Slices
• Magnet model
• Interior U-Rotor Thermal Circuit
• FEA Model - boundary conditions to be used.
• Radial / Axial node sizing - specifies the node radius used for setting the temperatures in the FEA radial and axial views

For other model settings see Settings[Input Data Editor].
