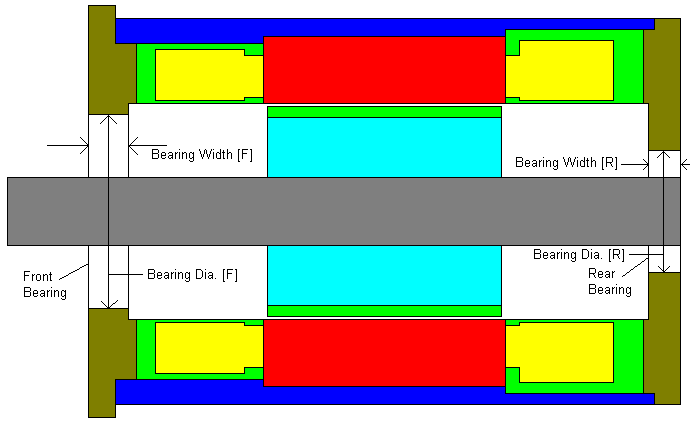

Bearing Geometry


Bearing Dia [F]	Bearing outer diameter [Front of motor]
Bearing Dia [R]	Bearing outer diameter [Rear of motor]
Bearing Width [F]	Bearing width [Front of motor]
Bearing Width [R]	Bearing width [Rear of motor]
Bearing Offset [F]	Bearing Offset [Front of motor]. This is the distance the bearing is offset from the endcap.
Bearing Offset [R]	Bearing Offset [Rear of motor]. This is the distance the bearing is offset from the endcap.
