Create a new workflow using the File > New menu item or by clicking the
New Model button on the Standard or File toolbar. Either action will open a
Windows dialog to save the new workflow.

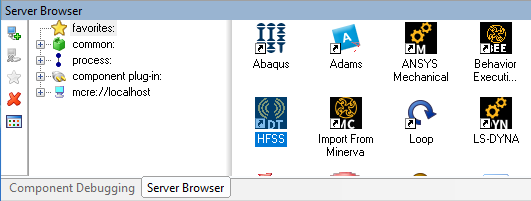

Drag the HFSS component from the Server Browser and drop it into the Analysis View.

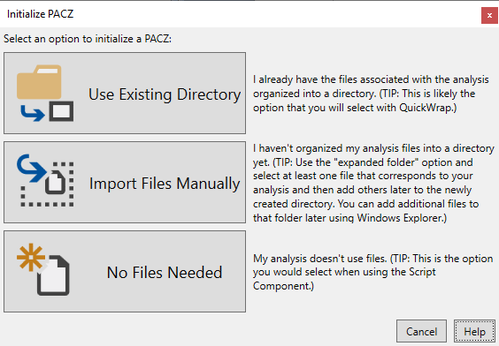

The Initialize PACZ dialog opens. Select the option that best describes the files for
your HFSS workflow, then select the folder or file as needed. For more information on
the Initialize PACZ dialog options, click the Help button in the dialog.
The HFSS Plug-In Component dialog will open with a file dialog. Select the .aedt
file and click the Open button.

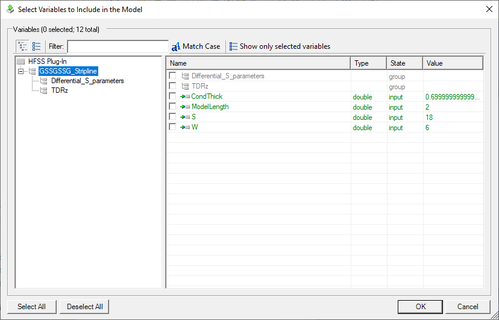

The selected file will load in the HFSS Plug-In Component dialog. Select the variables
that you want to use and then click the OK button.
The selected variables will load in the HFSS Plug-In. Click the Apply button to
save the variables to the ModelCenter workflow.

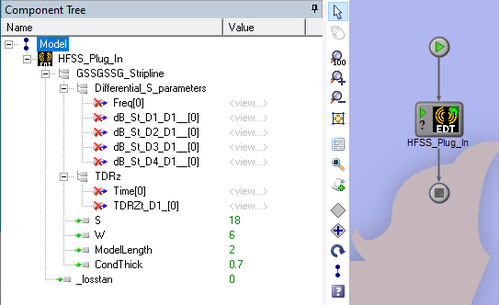

Close the HFSS Plug-In. Click the green Play button in ModelCenter (either on the
toolbar or on the HFSS Plug-In itself) to run the workflow.
