Network Properties Table

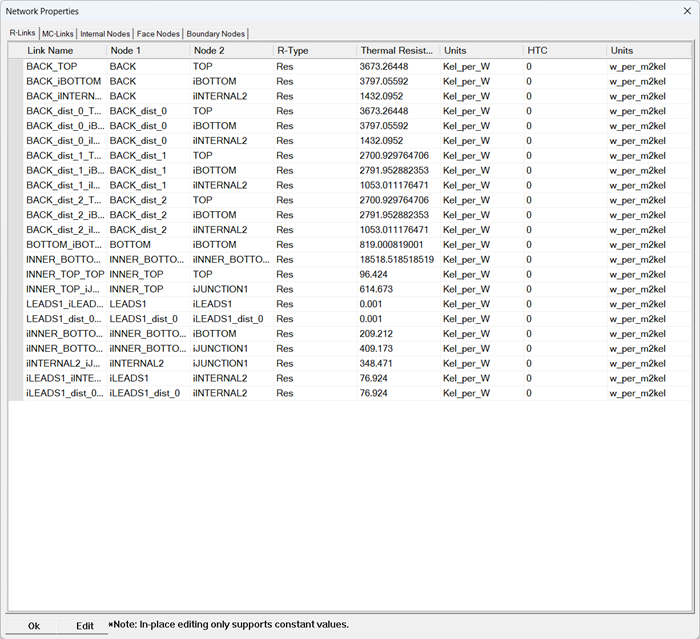

In the Network Thermal Model dialog box, click List to open the Network Properties dialog box, which displays link and node property information on up to five tabs (if the link and node types exist in the schematic):
- R Links
- MC Links
- Internal Nodes
- Face Nodes
- Boundary Nodes
Click any column heading to sort the property table. You can edit link and node properties directly in each cell. Alternative, select a row and click Edit to define properties in the dialog boxes described in Network Node and Link Properties.
Note: Click the image to open a full-sized version in a new tab.
