List Symbol Graphic Elements

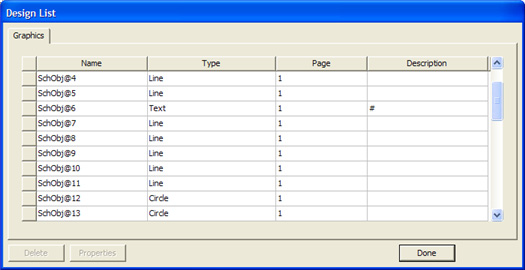

Click Symbol > List to open the Design List dialog box, which lists the graphics elements of a symbol.

• Name – The graphic ID.
• Type – The graphic type, such as circle, rectangle, arc, text, and pin.
• Page – The page number on which that graphic is located.
• Description – The descriptive text for text and pin graphic types; this column is blank for non-textual graphics.

See Listing Design Elements for additional information.
