Multimode Waveguide Simulations Transient

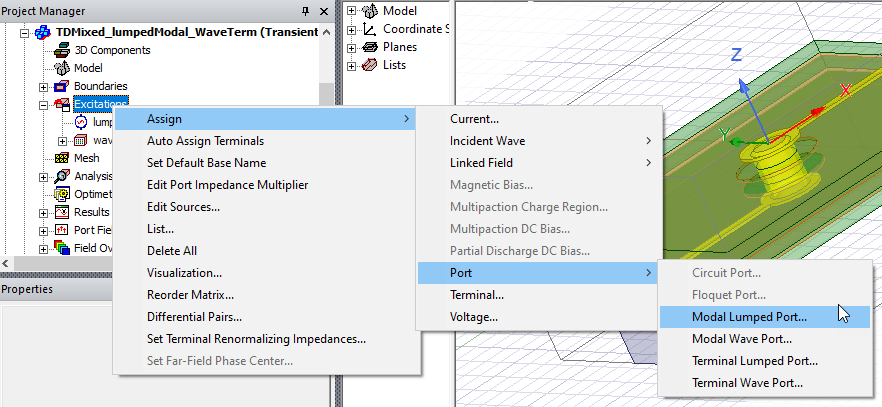

This release allows you to mix wave ports and terminals in a transient waveguide simulation. You can add Modal Wave Ports, Modal Lumped Ports, Terminal Wave Ports, and Terminal Lumped Ports to a single simulation. The Excitations menu shows these ports as available.

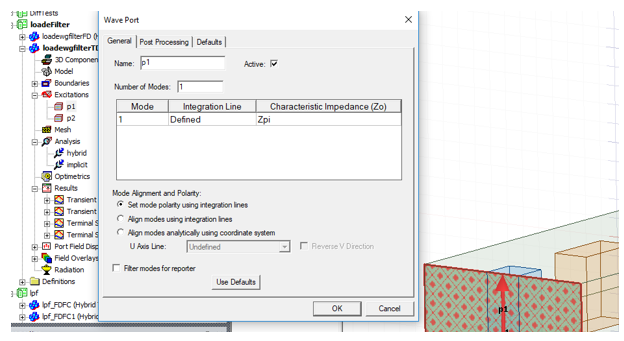

For mixed modal/terminal in transient simulation, the modal Wave Port dialogs are the same as in frequency domain.

You can mix each kind of wave and terminal ports with the others.

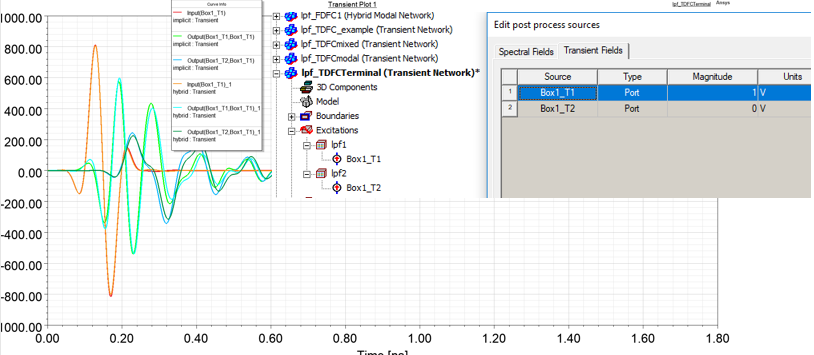

For a transient simulation with only terminal ports, the transient results in reporter are in Volts units, and you edit sources is in Volts units.

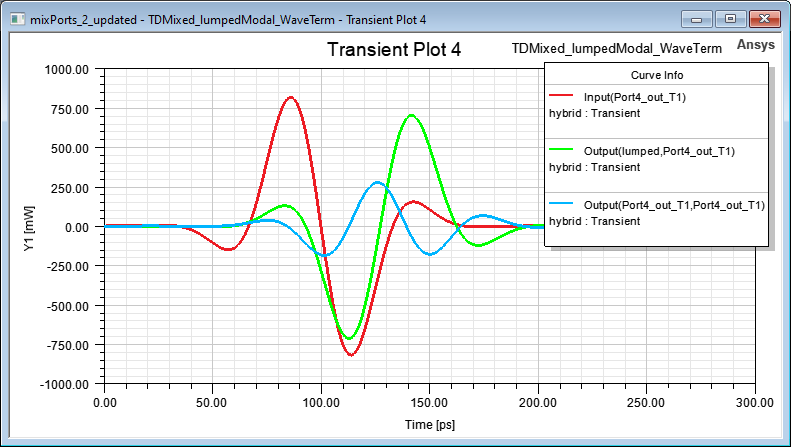

For a transient simulation with all modal or mixed modal/terminal, the transient results in are in Watt units,

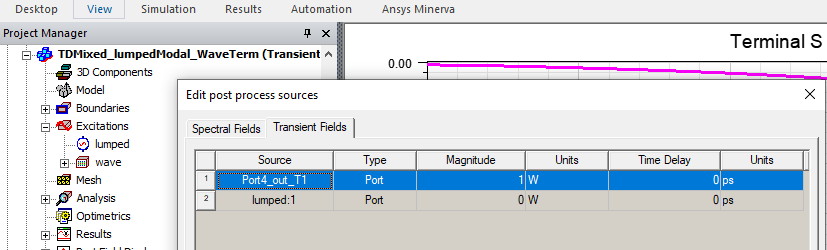

Consequently, for all modal, and mixed modal/terminal transient simulations, you edit sources in Watt units.
