Characterization Flow for IGBT and Power MOSFET

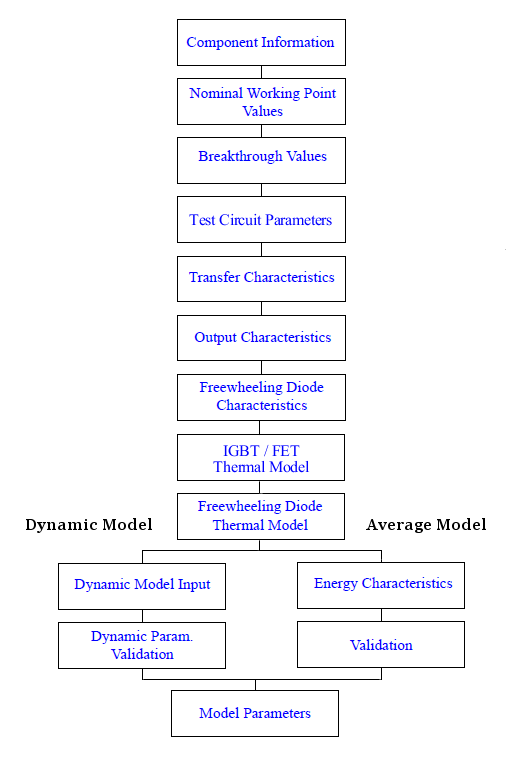

The chart below illustrates the flow of the Device Characterization wizard for the IGBT and Power MOSFET models (Average, Basic Dynamic, and Advanced Dynamic). The topic named in each box is linked to detailed information for the corresponding wizard dialog box.
- If you are characterizing a new device, begin by choosing Component Information.
- If you are continuing device characterization
from a previous session, choose the appropriate topic to resume the process.
