Icepak Simulation Results Menu Options

Navigate to the Icepak Results menu:

1. Click Results.
2. From the Icepak area, select Temperature > [Simulation Name].

Menu options include:

• Export Report — opens an *.html file detailing thermal plots at various elevations.
• View Profile — opens the simulation profile.
• View Simulation Properties — opens the Simulation Properties window on the Icepak Simulation Setup tab.
• Rename Solution — allows you to rename the solution.
• Delete Solution — deletes the solution.

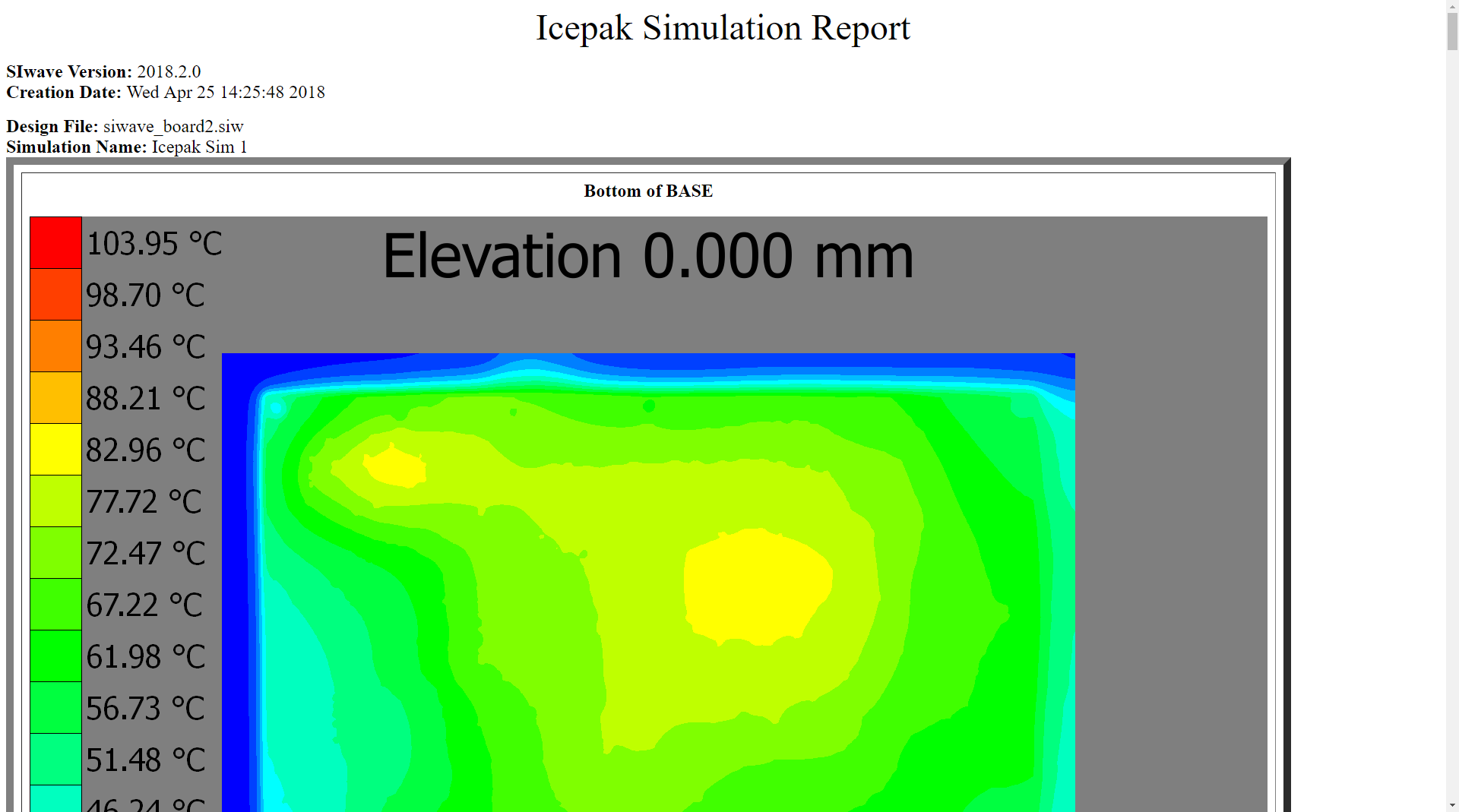

Export Report:

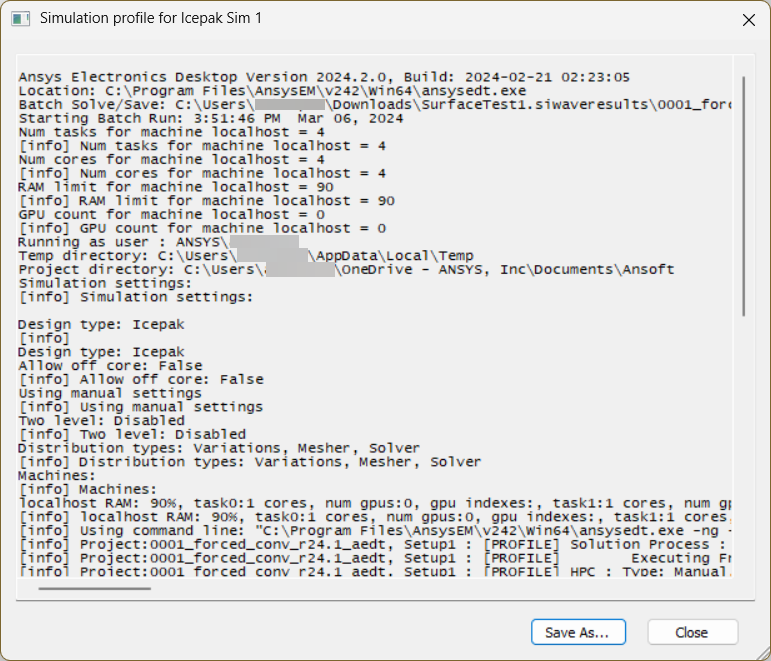

Simulation Profile:

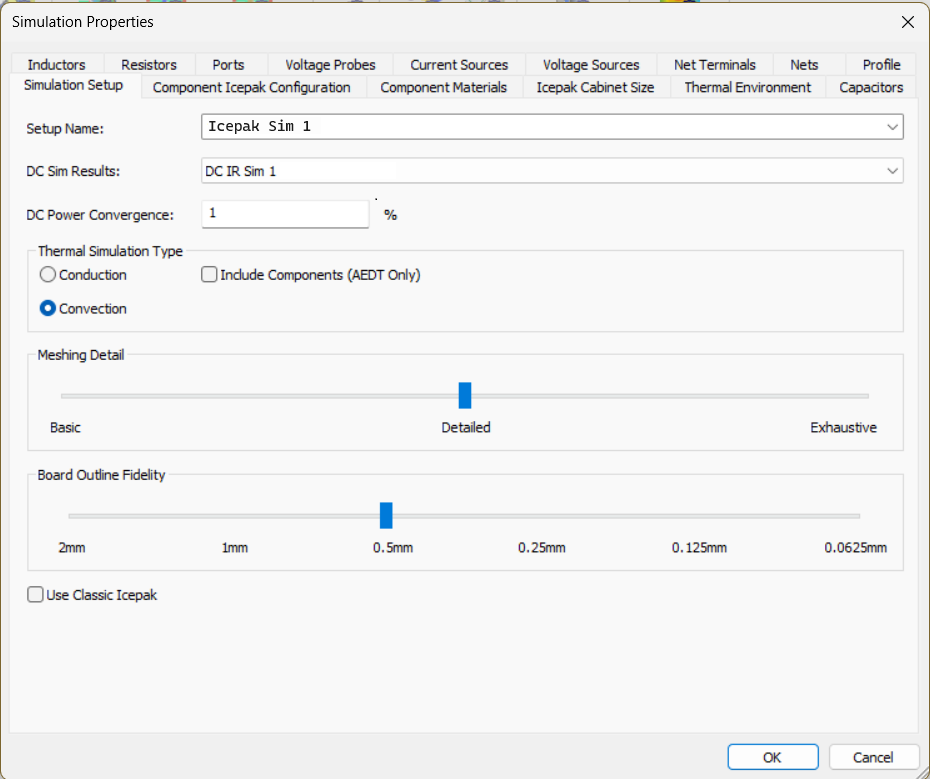

Simulation Properties:

From the Icepak results menu, you can also view Icepak results.
