AC Sweep Results Menu Options

Navigate to the AC Sweep Results menu:

1. Click Results.
2. From the PSI area, select AC Currents > [Simulation Name].



Menu options include:

• Export total radiated power... – exports power information in Comma Separated Value (*.csv) format.
• View Profile – opens the simulation profile.
• View Simulation Properties – opens the Simulation Properties window on the Sweep tab.
• Rename Solution – allows you to rename the solution.
• Delete Solution – deletes the solution.

Total Radiated Power CSV file:

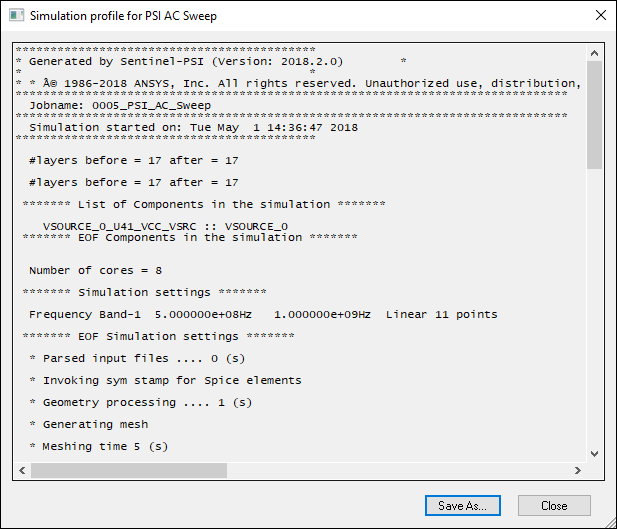

Simulation Profile:

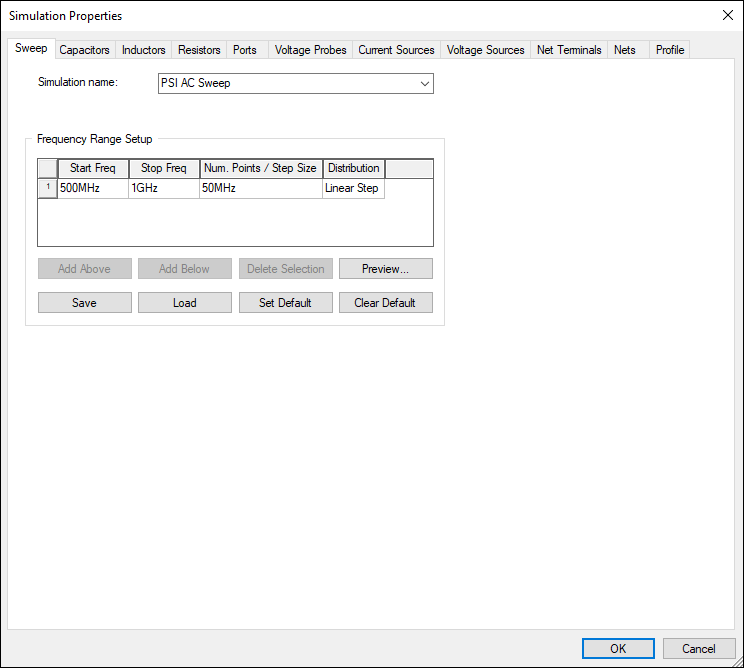

Simulation Properties:

From the AC Sweep Results menu, you can also plot probe voltages and currents.
