Creating a Fields Report

The following is the general procedure for creating any type of Fields Report. It includes drawing a polyline to use as the path along which structural results will be plotted or tabulated. This step is necessary for the predefined stress, strain, temperature, and various material property results. However, you can plot or tabulate Design Volumes and Named Expressions you create using the Fields Calculator (see note below) without creating any polyline geometry.

Note:

The Fields Calculator is a powerful and flexible tool for post processing your analysis results. Use it to perform simple or complex mathematical operations on the raw results data. With an appropriate named expression defined, you can generate a report that does not require a polyline as its basis. For example, you could define a face or object list and create a named expression that finds the maximum equivalent stress among the items in the list. Then, in a parametric analysis, you could base the plot's X axis on a design parameter. Finally, base the plot's Y axis on your named expression, thus creating a plot of the maximum equivalent stress among the selected objects or faces versus the swept parameter. There are many other possibilities as well.

You can access the Fields Calculator by right-clicking Field Overlays in the Project Manager and selecting Calculator from the shortcut menu. For more information, search the Ansys Electronics Desktop help for "using the fields calculator" (include the quotation marks to limit search results to instances of the full phrase). Also, refer to the Related Topics links at the bottom of the Using the Fields Calculator page.

  1. Create a polyline path to use as the basis of the table or plot's X axis using one of the following two methods:
    • Draw a polyline manually:
      1. On the Draw ribbon tab, click Draw line.
      2. If prompted to create a non-model object (because a solution already exists), click Yes.
      3. Draw a line or series of lines along which you wish to determine the structural results. The line segments should pass through or along the surfaces of the bodies comprising the model. Use one of the following three drawing methods:
        • Specify the line start and end points graphically (by clicking in the Modeler window). You can snap to model vertices (endpoints), midpoints or edges, grid points, and more.
        • Specify the points by typing the coordinates into the X, Y, and Z text boxes in the status bar.
        • Draw an arbitrary line and edit it's properties afterward (in the docked Properties window or the Properties dialog box).

          • You can switch between straight and curved segments by right-clicking in the Modeler window and choosing the desired Set Edge Type option.

      4. After clicking the last endpoint, right-click in the Modeler window and choose Done to terminate the Draw Line command.

        5. Notice the name of the line object that has been added to the History Tree. The default name for the first line object is Polyline1, and you can change the name in the docked Properties window if desired.

    • Convert model edges to a polyline:
      1. In Edge selection mode, select a model edge or a contiguous series of model edges to select them.
      2. On the Draw ribbon tab, click Edge > Create Object From Edge.
      3. While the objects are still selected, click Unite on the Draw ribbon tab.

        4. Notice the name of the united object that has been added to the History Tree. You can change the name in the docked Properties window if desired.

  2. Access the Report dialog box using one of the following three methods:
    • On the Results ribbon tab, click Fields Report and choose the desired display type (such as, 2D, Data Table, or Stacked).
    • Using the menu bar, click Mechanical > Results > Create Fields Report > desired display type.

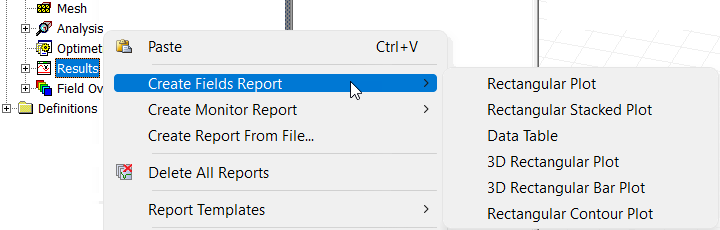

    • Right-click Results in the Project Manager and choose Create Fields Report > desired display type:

  3. Specify the following settings in the Report dialog box:
    1. Choose the desired solution setup from the Solution drop-down menu (if you solved more than one setup).
    2. Choose the polyline you created previously from the Geometry drop-down menu.
    3. Optionally, specify a different number of Points to calculate along the specified polyline. (The default number of points is 101, which results in one hundred trace segments between the first and last data points.)
    4. In the Category list, select Calculator Expressions, if it is not already selected.
    5. Select the desired Quantity or Quantities to tabulate or plot. (You do not need to specify a Function for structural results.)

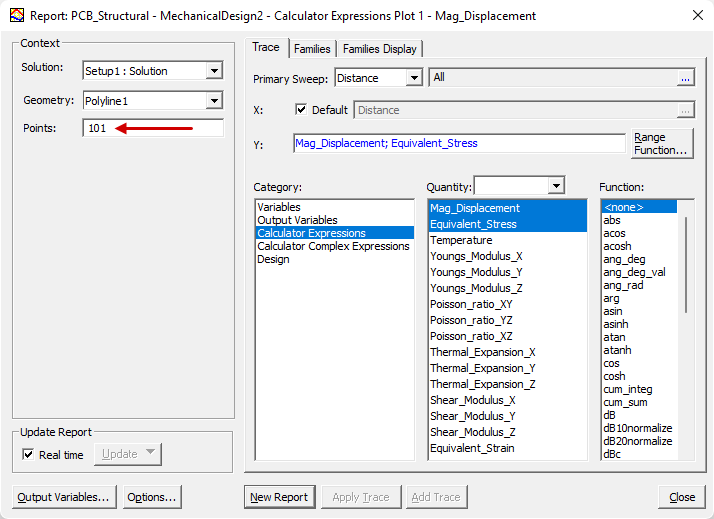

    The following report setup example shows the settings to tabulate or plot Mag_Displacement and Equivalent_Stress results along Polyline1:

  4. Optionally, click Range Function to apply a mathematical operation to the results. Then:
    1. In the Set Range Function dialog box, choose the desired operation from the Function drop-down menu (such as sum, mean, max or variance).
    2. Click OK to return to the Report dialog box.
  5. Click New Report.

    6. The plot or data table appears in a new window.

  6. Optionally, if you created a plot, you can double-click inside the legend box to access the Properties dialog box and customize many plot parameters, such as:
    • Trace colors, style, and width
    • Enable data point symbols and change their color, fill, style, and frequency
    • Grid options
    • Headers
    • X and Y axis parameters and scaling
  7. Optionally, if you created a data table, you can customize it in the following ways:
    • Drag the column borders to resize the columns.
    • Click on a column heading and then, in the docked Properties window, adjust the Units, Field Width, or Field Precision values.
  8. Optionally, select parameters for one or more additional results to add to the current plot or table and click Add Trace.
  9. Click Close to exit the Report dialog box.

Examples:

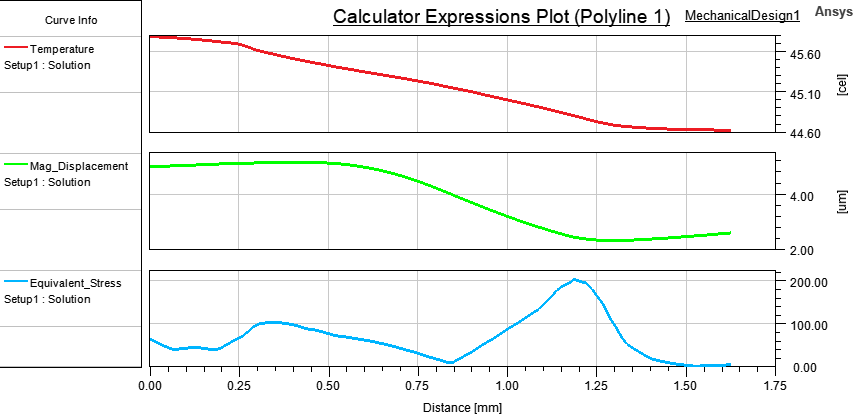

The following example is a stacked rectangular plot of the Temperature, Mag_Displacement, and Equivalent_Stress results along Polyline1 (based on the example model shown in the structural Fields Report topic):

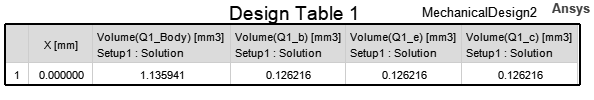

The following example is a data table listing the volume of the four objects comprising transistor Q1. It has been modified to show the volumes in cubic millimeters, and the columns have been reduced from their default widths:

The contents of the Y text box in the Report dialog box used to produce the preceding table were as follows:

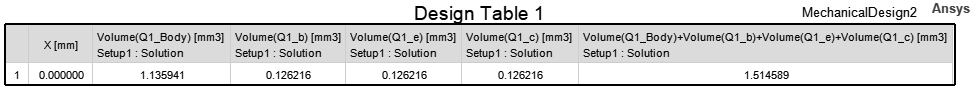

In this example, an additional column has been added to Design Table 1. It shows the total volume of the four objects included in the original table:

With the Volume of all four parts selected in the Quantity list of the Report dialog box, the semicolons in the Y text box were replaced with plus signs (+):

to produce the total volume column (far right).
