Working with the Project Tree
The project tree is located in the Project Manager window and contains details about all open Maxwell projects.
The top node listed in the project tree is the project name. It is named Projectn by default, where n is the order in which the project was added to the current session of Maxwell. Expand the project icon to view the project's Maxwell design information, 3D Components (if any) and material definitions.

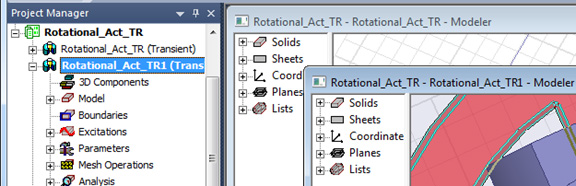

By default, the project tree icon for the active window is highlighted, as shown in the following figure. (See User Interface for the options.) With the option disabled, Rotational_Act_TR (Transient) in the project tree would not be highlighted.
When the project tree is taller than the window, if you mouse has a scroll wheel, you can click in the Project Manager and use the wheel to scroll up and down. If the project tree is larger than the window size, there is also a scroll bar can control with the mouse cursor.
In the project tree, an "unknown" section lists objects that do not fit one of the following dimensionality types: solid, sheet, or wire.
