TAU Flex Meshing

TAU Flex is designed for guaranteed mesh success, and may also reduce meshing time. It provides a mesh even for complex and “dirty” geometry model without any preliminary geometric healing or repair.

TAU Flex is a multidomain, priority mesher which provides more efficient and reliable meshing. The priority mesh generation is driven by solver requirements for materials (metal/non-metal), boundary conditions (ports, radiation etc.), conduction paths, and so forth. The constraint tolerant meshing method gives the TAU Flex mesher flexibility to excuse mesh difficulties in lower-priority regions so that the resulting mesh can still provide acceptable simulation results.

Steps for Using TAU Flex

1. Navigate to the Initial Mesh Settings window.

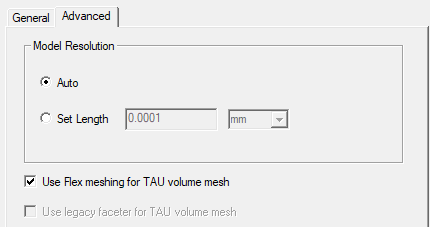

2. Click the Advanced tab and select Use Flex meshing for TAU volume mesh.

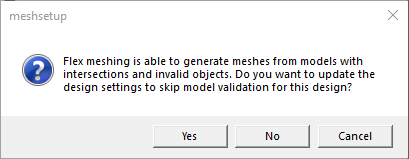

   Selecting this option opens a dialogue. Click Yes to continue.




To get the full benefits of TAU Flex, especially for complex or “dirty” models, follow these recommended steps:

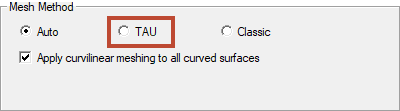

1. On the General tab of the Initial Mesh Settings dialog box, select TAU.




2. Click [solver] >Design Settings to open the Design Settings dialog.

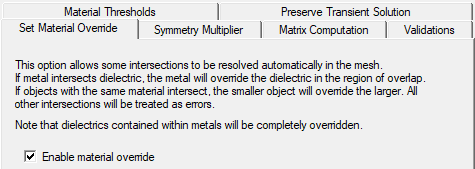

Check Enable material override in the Set Material Override tab to activate TAU’s priority meshing method based on metal/non-metal materials.

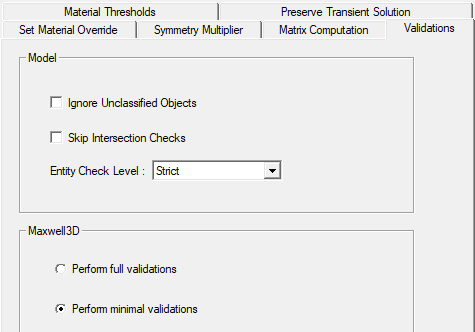

3. Select the Validations tab of the Design Settings dialog and select Perform minimal validations.


   This reduces preprocessing time for complex models, and allow simulation of “dirty” geometry for which TAU Flex can provide a mesh.

4. Because TAU Flex is a parallel mesher for many processes, you should specify multiple cores in HPC and Analysis Options to speed up the meshing process. Access the Analysis Configuration window one of two ways:

   • Select the Simulation tab on the ribbon and click Analysis Config.
   • Use Tools > Options > HPC and Analysis Options or select the Simulation tab on the ribbon and click HPC Options. Then double-click a configuration.

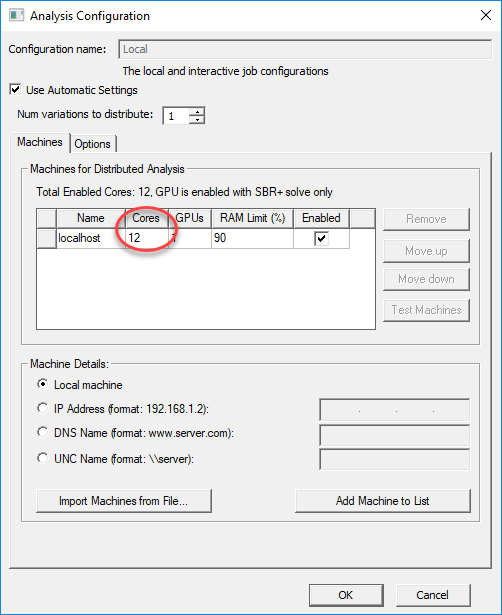

   The Analysis Configuration window appears.



   Specify the number of cores to use.


5. In most cases, TAU Flex can provide mesh as accurate as TAU or Classic, though not always. Therefore, we recommend that you Generate Mesh without solving; and that you review the mesh before proceeding with the simulation.

TAU Flex Warning Messages

In cases where TAU Flex has difficulty making a strict mesh on some objects, mesh warnings are given for those objects. You should review the mesh on those objects before proceeding to the simulation. You can exercise discretion in deciding whether a given mesh issue needs to be addressed (for example, critical antenna geometry) or can be ignored (for example, a small “leak” in a dielectric substrate far from the source).

There are three types of warnings, in decreasing order of severity: “Mesh Leak”, “Major Mesh Repair”, or “Minor Mesh Repair”.

• "Mesh Leak" – The most severe warning. A body does not have any mesh element, or it has mesh elements with a significant mismatch of surface area between the mesh and geometry – larger than 10% of planar area, or 20% of curved area.
• "Major Mesh Repair" – A body has major surface area mismatch between the mesh and geometry – larger than 5% of planar area, or 10% of curved area.
• "Minor Mesh Repair" – The least severe warning. A body has minor surface area mismatch between the mesh and geometry – less than 5% for planar area, or 10% for curved area.

Reviewing TAU Flex Mesh Warnings

TAU offers three ways for you to view mesh warnings:

1. Message Manager:

Immediately after the mesh generation is done, if a tolerant mesh is given, warnings will be displayed in the Message Manager of the Desktop. If the window is hidden, click Show Messages.


2. Mesh Statistics

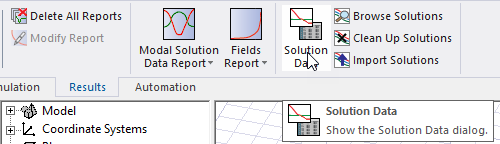

Use the Solutions Data icon in the Simulation tab of the ribbon to open a Solutions dialog box.

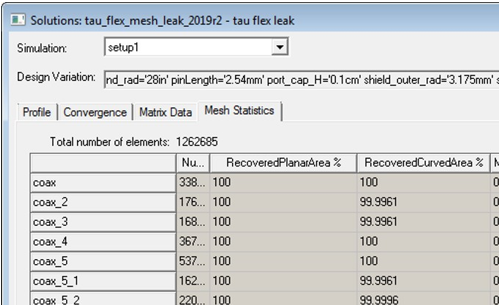

In the Mesh Statistics tab of the Solutions dialog box, if a tolerant mesh is generated, the surface area difference between the mesh and geometric model at body level is listed as “RecoveredPlanarArea” and “RecoveredCurveArea”. 100% means that the body has a strict mesh. You can click the surface area tab to sort the body list and see the tolerant mesh bodies first.




3. Model Analysis dialog box, Mesh Feedback

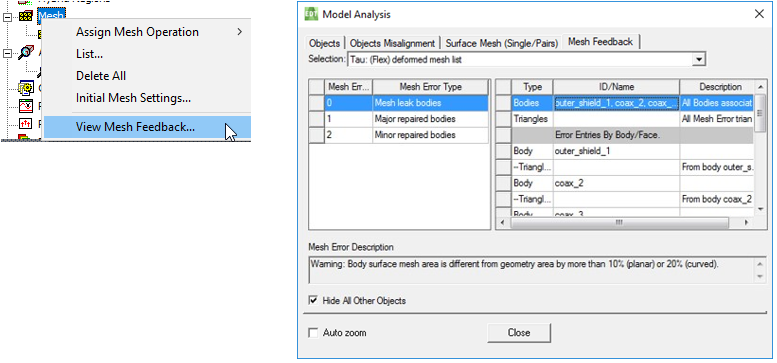

1. To view the details of the tolerant mesh, click Modeler > Model Analysis > Show Analysis Dialog > View Mesh Feedback to launch the Model Analysis dialog box.



2. Click on the top list to display objects that have tolerant mesh.
3. Click on the “Triangles” to display the mesh on the tolerant objects.
4. Individual objects will be listed under “Error Entities By Body/Face”. You can select one or multiple bodies to view the mesh at a more detailed level.

Addressing TAU Flex Mesh Issues

In cases where TAU Flex has difficulty making a strict mesh on some objects you can address the problem by using one of the following techniques:

1. Redraw the geometry in question in the native modeler
2. Heal the geometry either with the integrated healers in Maxwell or perhaps in SpaceClaim
3. If the objects has curved or true surfaces consider applying a localized surface mesh operation which creates a finer than default mesh.
4. Remove difficult objects that are not critical to the simulation.
