Refinement Points Table

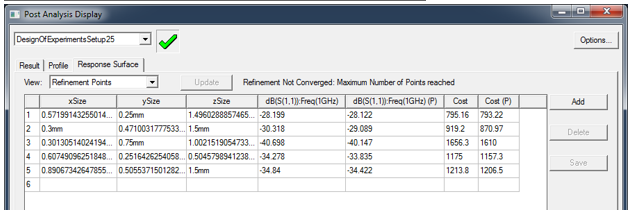

From the Response Surface tab, the View list lets you select all available views of the selected response-surface setup. All refinement points are shown in the Refinement Points table:
Refinement points are points added to your model to enrich and improve your response surface. They can either be generated automatically with the response surface update or added manually, as described in Performing a Manual Refinement. As with design points, DesignXplorer must perform a design point update (a "real solve") in order to obtain the output parameters for the refinement points.
Upon update, the refinement points are used to build the response surface and are taken into account for the generation of verification points. Along with DOE points, refinement points are also used as "learning points" for Goodness of Fit calculations.
Performing a Manual Refinement
Manual refinement is a way to force the response surface to take into account points of your choice in addition to the points already in the Design of Experiments. You can insert a refinement point in the Refinement Points table and do not need to do an initial solve of the response surface (without the refinement point) before updating your response surface with your manual refinement. Manual refinement is available for all response surface types except for Sparse Grid.
You can add, delete, or modify refinement points by clicking the Add or Delete buttons, or by modifying point values directly in the grid.
Manual Refinement Point can be inserted from the Response point table and Verification Points Table.
