Property

Description

DiaGap

Core diameter on gap side, or outer diameter

DiaYoke

Core diameter on yoke side, or inner diameter

Length

Core Length

Skew

Skew angle in core length range

Poles

Number of poles

PoleType

Pole type: 1 to 2

WidthCore

Overall width of a racetrack core

Embrace

Pole embrace (the ratio of pole arc to pole pitch)

Offset

Pole arc offset

WidthPole

Minimum width at pole root

Ty

Yoke thickness

Ts

Shoe-tip thickness

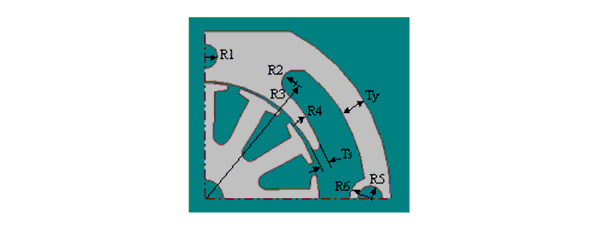

R1

Radius of the screw holes in pole center

R2

Radius of the side fillet arc at pole root

R3

Radius of the side fillet arc center layout circle

R4

Radius of the shoe connecting arc, 0 for auto-design

R5

Inner radius of the screw holes in between two poles

R6

Outer radius of the screw holes in between two poles

EndExt

Coil one-side end extended length

LenRegion

Region length

InfoCore

0: core; 1: coils; 2: one coil; 3: terminal1; 4: terminal2: 100: region
