Property

Description

DiaGap

Core diameter on gap side, or Dmin, the minimum inner diameter

DiaYoke

Core diameter on yoke side, or frame outer diameter

Length

Main pole length, 0 for 2D geometry

Skew

Skew angle in pole length range

FrameWidth

Overall width of a racetrack frame

FrameThick

Frame thickness

FrameLength

Frame length

Poles

Number of poles

PoleType

Pole Type: 1 or 2

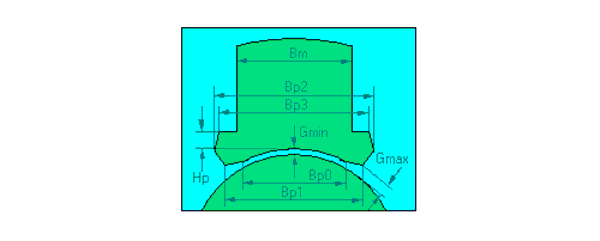

Dmax

Diameter of shoe tip with maximum air gap length

Bp0

Pole arc width with uniform air gap, 0 for eccentric air gap

Bp1

Total pole width (the width between shoe tips)

Bp2/Rp0

Bp2 (max shoe width for pole type 1), or Rp0 (shoe fillet radius for pole type 2)

Bp3/Rp1

Bp3 (min shoe width for pole type 1), or Rp1 (pole fillet radius for pole type 2)

Hp

Pole body height

Bm

Pole body width

FieldWndgs

Number of field windings, 2 for both series and shunt windings

EndExt

Coil one-side end extended length

SlotsPerPole

Compensating slots per pole distributed under pole arc surface

Bc0

Opening width of compensation slots

Hc0

Opening height of compensating slots

Bc2

Width of compensating slots

Hc2

Height of compensating slots

CmpEndExt

One-side end extended length of compensating coils

ComPoleWidth

Width of the commutating poles

ComPoleHeight

Height of the commutating poles

ComPoleLength

Length of the commutating poles

ComShoeWidth

Shoe width of the commutating poles

ComShoeHeight

Shoe height of the commutating poles

ComShoeLength

Shoe length of the commutating poles

ComGap2

Air gap length between commutating poles and the frame

CmtEndExt

One-side end extended length of commutating coils

LenRegion

Region length

InfoCore

0: core&coil; 1: poles; 2: frame; 3: com poles; 4: shunt coil; 5: series coil; 6: com coil; 100: region

InfoTerm

0: whole coil; 1: terminal1; 2: terminal2
