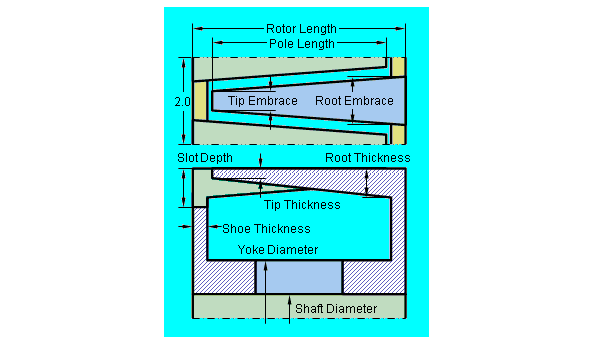

Property

Description

DiaGap

Core diameter on gap side, DiaGap < DiaShaft for outer cores

DiaShaft

Core diameter on shaft side, DiaShaft < DiaGap for inner cores

Length

Core Length

Poles

Number of poles

EmbraceTip

Embrace of pole tip

EmbraceRoot

Embrace of pole root

ThickTip

Thickness of pole tip

ThickRoot

Thickness of pole root

ThickShoe

Thickness of side shoes

DepthSlot

Depth of slot between two poles

ThickYoke

Thickness of yoke

LengthPole

Length of pole from tip to tip

LengthMag

Length of magnet or the second air-gap

LenRegion

Region length

InfoCore

0: core; 1: core&coil; 2: coil; 3: magnet; 100: region
