Per-Winding Loss Outputs for Maxwell 2D/3D Transient and Eddy Current Designs

Maxwell 2D/3D transient (T-omega only) and eddy current designs support loss quantity outputs for each winding when creating reports.

For the various winding types, the supported per-winding loss quantities are

• Solid winding

  • SolidLoss

• Stranded winding without Litz wire

  • StrandedLoss

• Stranded winding with Litz wire

  • StrandedLoss

  • StrandedLossAC

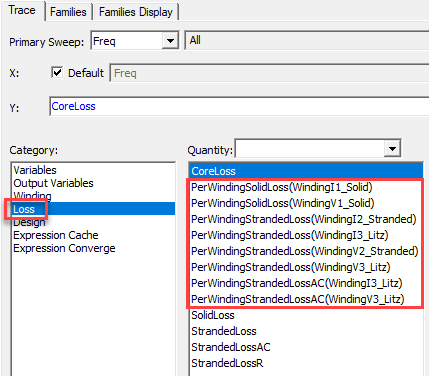

For example, the winding assignments in the eddy current design shown below,

result in the following per-winding loss quantities available in the reporter.
