Min-Max Search View for Design of Experiments Result
From the Response Surface tab, the View list lets you select all available views of the selected response-surface setup.

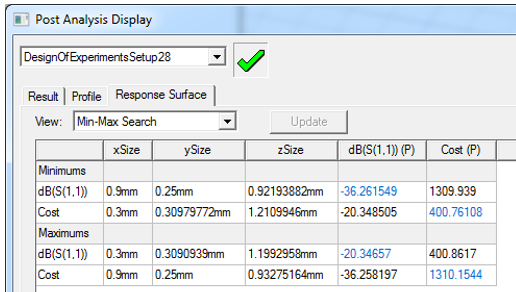

The Min-Max Search view examines the entire output parameter space from a response surface to approximate the minimum and maximum values of each output parameter. When you select a Min/Max row, the Apply button is enabled, and you can then apply the selected variation variable values to the variables’ nominal values.
You can export the table in the following formats:
-
Comma delimited data files, (*.csv)
-
Tab delimited data files, (*.tab)
-
Ansoft Plot data files, (*.dat)
-
Post Processor format data files, (*.txt)
